Description

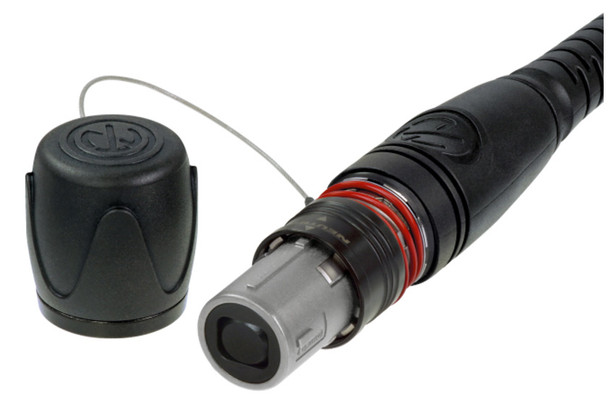

The Camplex opticalCON MTP/MTP singlemode field cable with 24 fiber Neutrik opticalCON MTP connectors simplifies connections and reduces installation time by running multiple fibers in one cable. This ruggedized Camplex cable saves space for field deployable broadcast AV applications and data transmission over singlemode fiber trunks. The opticalCON MTP connectors feature a spring loaded push-pull locking mechanism for reliable operation. Assembled, rugged and lightweight 24-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket.

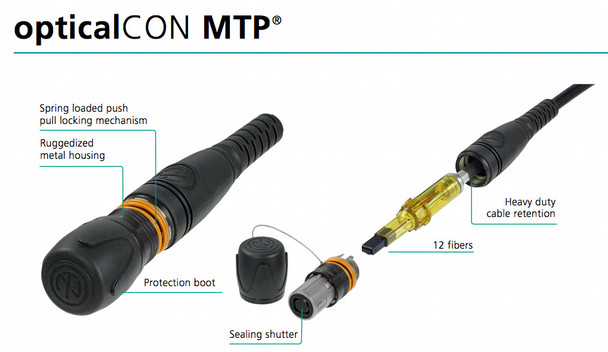

The opticalCON MTP cable connector accommodates 24 optical fibers (single mode APC) based on conventional and proven MTP connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
Use with Camplex breakout cables, Camplex MTP NEMA field boxes, Camplex breakout boxes, Neutrik opticalCON MTP chassis connectors NO12FDW-A, and Neutrik opticalCON MTP couplers NAO12SAW-A for durability and high performance.
-
Features:
- Outdoor field deployable
- Low insertion loss and optimized optical return loss values
- Space saving multi-fiber design reduces cleaning and mating time
- Neutrik opticalCON MTP connectors- lockable & waterproof caps with hinged dust covers
- Cut-proof and rodent-resistant double-jacket
- Available in a variety of lengths.
- Made in the USA
-
Specifications:
- Singlemode
- 24 fiber assembly
- Cable diameter: 8.2mm
- Polyurethane cable - black PUR outer jacket
- Equivalent to: Neutrik NKO12S-A-0
