Description

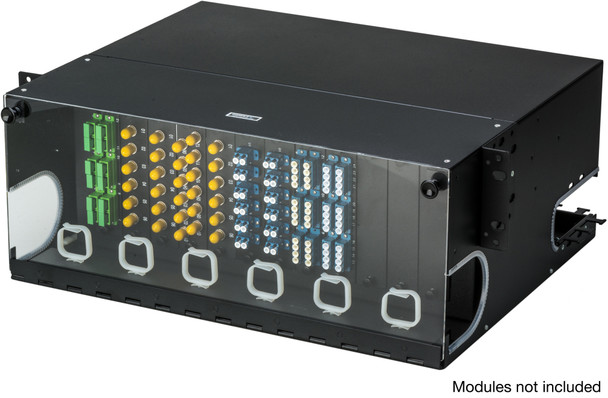

The CMX-MPR-4RU adjustable rackmount fiber optical enclosure fits both 19 & 23-inch racks and holds 12 Modules for up to 288 fiber termination points. Camplex rackmount fiber optic enclosures deliver simplified interconnections in video studio, OB truck and IT cabling systems between routing, video extenders and other active equipment. Our low cost fiber patching solutions offer the added benefit of protecting the mechanical connections of your devices and extend the equipment life.

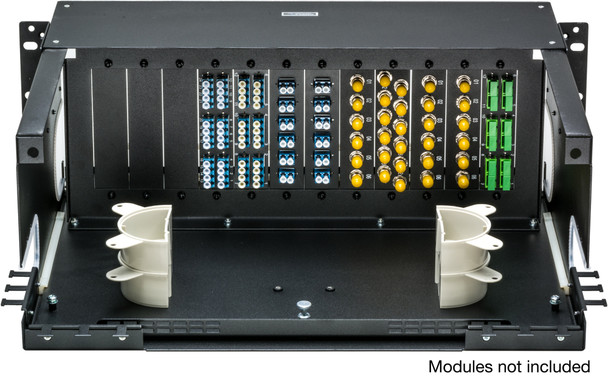

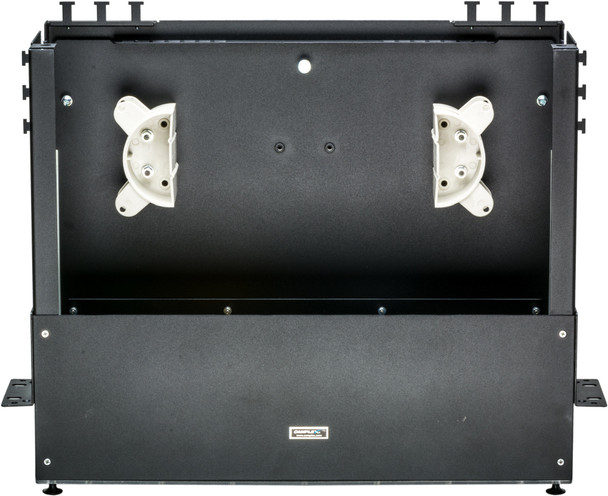

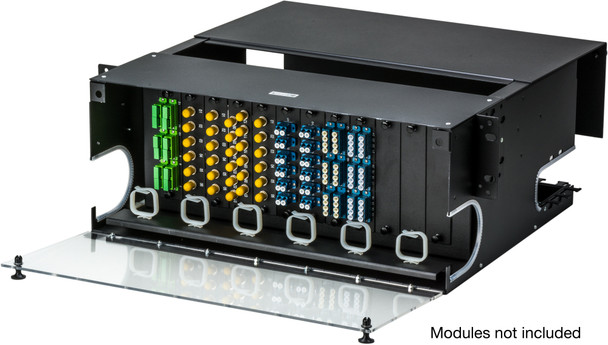

The enclosure features a slide-out front tray for access to the chassis interior when fiber management is necessary. The rear panel has all the required cable routing cutouts you'll need.
The Camplex modular design chassis holds a variety of fiber adapter plates allowing the flexibility to order connection types based on your needs. Order 1 or order 12 plate groups in a variety of connector combinations. Adapter plates quickly mount in a tool-less fashion with "push-pin" locking mechanisms.
-
Features:
- 4RU Cabinet with Termination Densities from 144 to 288 Fibers
- Toolless Entry with Sliding Tray for Easy Access
- Internal Mounting Holes for Cable Tie-Down, Fiber Management, and Splice Tray
- Routing Guides Limit Internal Bend Radius
- Corrosion Resistant Black Powder-Coated Metal Steel Enclosures
- Modular Design Supports a Variety of Modules (see CMX-MP Modules)
- Heavy Duty Metal Construction
-
Specifications:
- Configuration 4RU
- 19-inch Mount Adjusts to 23-inch Frame
- Max Capacity/12 Modules: 288 fibers
- Dimensions: 19 x 14.75 x 3.5 in
- Weight: 15 lb 9 oz
-
Item Includes:

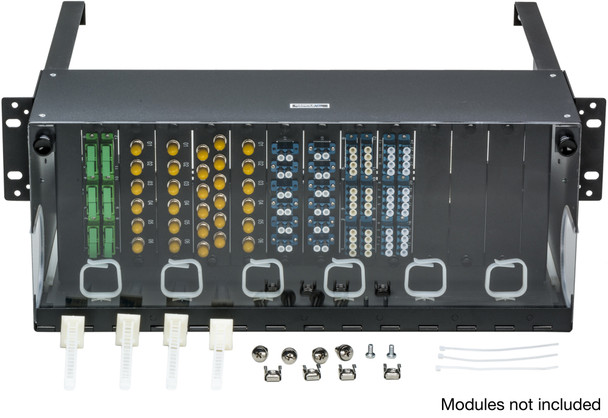

- Cable management pack: plastic tie wraps, cable managers with adhesive bottom, port identification label, and radiation caution label, screws for securing to rack and top panels
