Description

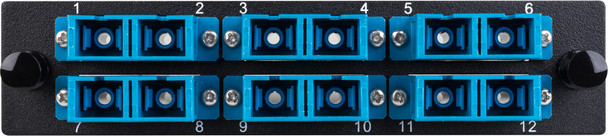

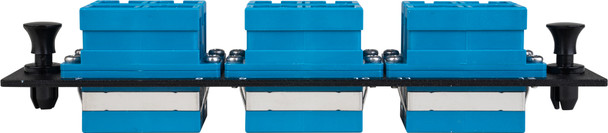

The CMX-MP12SCD adapter plate module quickly pops in and out of any Camplex MP series rackmount or wall box enclosure and delivers six duplex (12 fibers total) feed-thru patch points for UPC SC singlemode fiber.

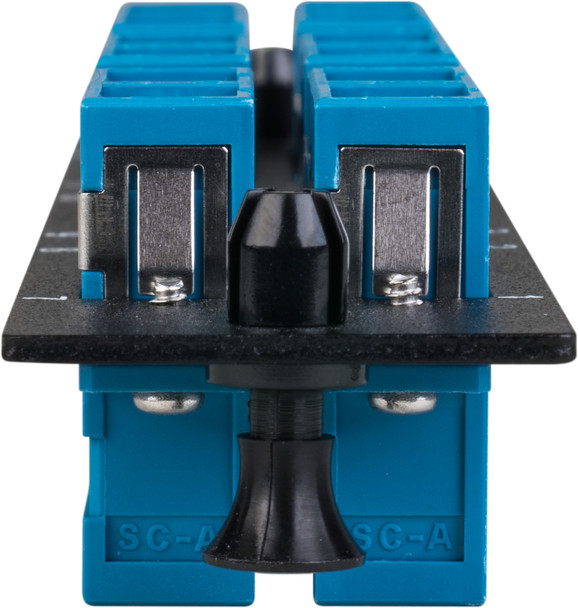

Adapter plates mount in a tool-less fashion with "push-pin" locking mechanisms. Mix and match a variety of Camplex MP adapter plate modules with any MP series frame to easily expand your truck and studio fiber port needs.
-
Features:
- Singlemode Plates are Multimode Compatible
- Designed for Camplex CMX-MPR Rack Mount Enclosures
- 12 Fiber, 6 Port Capacity
- SC UPC Duplex Connectors
- Corrosion Resistant Black Powder-Coated Aluminum Plate
- Dimensions: 5.125 x 0.0625 x 1.125 in / 5.125 x 1.5 x 1.125 in (with connectors)
- Weight: 3 oz
