Description

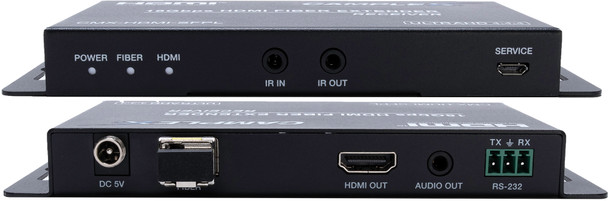

Extend 4K HDMI beyond distances you ever imagined possible with the Camplex HDMI-SFPL fiber optic HDMI 2.0 extender with HDMI loop out. It is the perfect match for eSports arenas, concert venues, stadium digital signage applications and wherever distributing a crystal clear 4K HDMI 2.0 18G signal over long distances is required.
The Camplex HDMI-SFPL fiber extender supports video resolutions up to 4K2K@50/60Hz and takes full advantage of single mode cables to drive signals over 10km. It features bi-directional infrared control and RS-232 signals transmission to allow source distance operation of additional sources, commercial insertion sources and more.
A locking power supply ensures no accidental signal loss which is a must in any professional installation.
The system includes (2) Single Mode Simplex LC fiber SFP modules.
-
Features:
- Transmission Up to 10km over Simplex Single Mode Fiber
- Video Resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
- Bi-directional Infrared Control
- RS-232 Transmission
- SFPs (small form-factor pluggable) Included
- LED Indicators for Power, Optical, & HDMI
- Rugged, Black Powder-Coated Metal Housing
- Locking Power Adapters
- CE, RoHS Certified
- Single Fiber Simplex Operation
- Video Resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
- EDID Management
- HDMI Loop out
- Audio Embedding on Tx, Audio Extraction on Rx
- Bi-Directional Infrared Control
- Bi-Directional RS-232 Transmission
- LED Indicators for Power, Optical, & HDMI
- Rugged, Black Powder-Coated Metal Housing
- Locking Power Adapters
- CE, RoHS Certified
-
Specifications:
- Compliance: HDMI 2.0b (18Gbps), HDCP 2.2
- Video Bandwidth: 18Gbps
- Video Resolutions: Up to 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
- Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
- HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital / Plus / EZ, Dolby TrueHD, DTS, DTS-EX, DTS-HD Master Audio, DSD
- Transmission Distance: Up to 10km over single mode
- IR Frequency: 20KHz-60KHz
- RS-232 Baud Rate: 4800-115200bps
- TX Input: 1-HDMI Type A, 1-Line In (3.5mm Stereo Mini Jack), 1-IR In (3.5mm Stereo Mini-Jack), 1-RS-232 (3.81mm Phoenix Connector)
- TX Output: 1-HDMI Out (Type A 19-Pin Female), 1-Optical Fiber Out (LC Female), 1-IR Out (3.5mm Stereo Mini-Jack)
- RX Input: 1-Optical Fiber In (LC Female), 1-IR In (3.5mm Stereo Mini-Jack)
- RX Output: 1-HDMI Out (Type A 19-Pin Female), 1-IR Out (3.5mm Stereo Mini-Jack, 1-RS-232 (3.81mm Phoenix Connector)
- Power Consumption: 3W
- Power Input: AC100 - 240V 50/60Hz
- Dimensions (each unit): 134 (W) x 68 (D) x 18mm (H)
- Weight: TX: 9.87 oz/280g, RX: 9.81 oz/278g
- SFP Module Specifications: Simplex Single Mode LC Fiber
- Class 1 Laser ROHS, FCC CE Compliant
Resources
| Download the Manual |  Download |
|---|
