Description

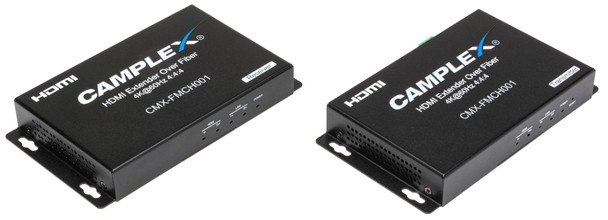

Extend 4K/60Hz HDMI signals from cameras, projectors or production switchers up to 37 miles over single mode fiber with the Camplex FMCH001. It's the perfect compact tool for large venue live events like festivals, outdoor sports and arena video productions.
The Camplex FMCH001 supports the highest video resolutions up to 4kx2k@60hz, YUV4:4:4 HDR at bandwidths up to 18Gbps with no latency. The unit also supports RS-232 protocols for complete control of your systems. The Camplex FMCH001 is fully HDCP 2.2 compatible. Its automatic EDID detection makes it a perfect fit for 4K digital signage applications.
Please Note: SFPs sold separately. Duplex SFPs required. The FMCH001 does not support IR control.
-
Features:
- Automatic EDID for Rapid Integration of Source and Display
- Low Latency
- Supports HDCP 2.2, HDCP 1.4
- RS232 Bi-Direction Pass Through
- Locking Power Supplies
- Black Powder-Coated Cabinet
- Includes Two Phoenix Plugs for RS-232 Cable Termination
- Certifications: FCC, CE
- Compatible with MSA SFP+ SFP's - Duplex SFPs required
- SFPs NOT INCLUDED
-
Specifications:
- Transmission Distance: SFP module Dependent up to: Single Mode 37 miles (60km), Multimode 984 feet (300m)
- Resolutions: Up to 4kx2k@60hz, YUV4:4:4 HDR
- Bandwidth: Up to 18Gbps
- Video Format 4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/ VESA Resolution
- Audio Format Support LPCM 7.1, Dolby True HD, DTS-HD Master AudioT
- Power Consumption each Unit: 3W
- Dimensions each Unit: 5-7/8 x 3-1/4 x 7/8 inches
- Weight both Units: 1 lb
NOTE- Duplex SFPs required
-
Item Includes:

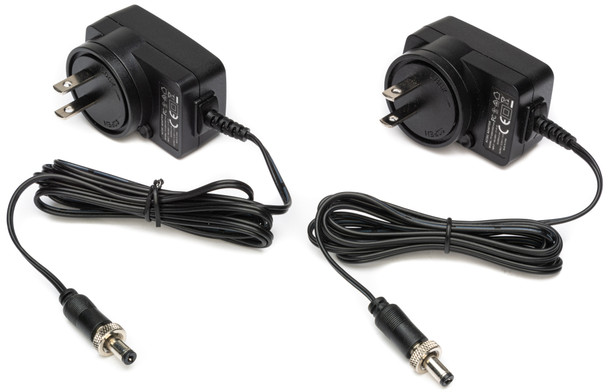

- Two 12VDC/1A Power Supplies, Two Phoenix Plugs, SFPS are NOT included
Note- Duplex SFPs required
- Two 12VDC/1A Power Supplies, Two Phoenix Plugs, SFPS are NOT included
-
Warranty:
- 1 Year
Resources
| Download the Manual (PDF) |  Download |
|---|
