Description
Add additional audio, video or Ethernet fiber lines to an existing fiber run with a Camplex CWDM series multiplexer / demultiplexer. Streamlines send and return feeds by combining 5 media channels over a single fiber (mux) or breaking out 5 media channels off a single fiber feed (demux). Ideal in production scenarios where multiple cameras or mic lines utilize fiber extenders and a single run simplifies setup and breakdown.

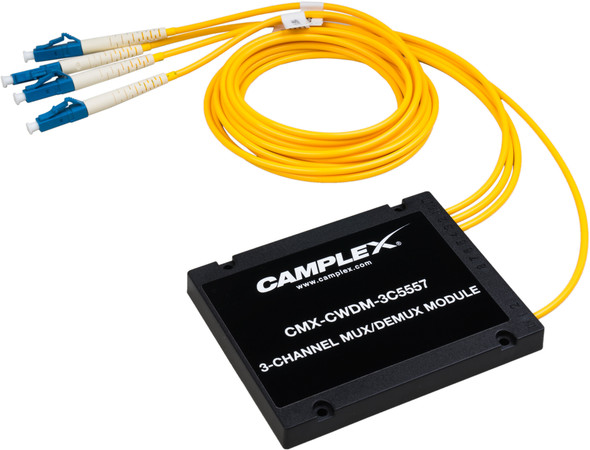

Camplex CWDM units employ coarse wavelength division multiplexing. Units are passive and can be used as a multiplexer or demultiplexer. Boxes are supplied with LC pigtails each labeled with corresponding wavelengths.
-
Features:
- Use Existing Fiber Infrastructure & Save Conduit Space
- Reduce Fiber Installation & Cleaning Labor
- Bi-Directional & Passive
- Low Insertion Loss & High Channel Isolation
- High Stability & Reliability
- Wide Passband
- Utilize Thin Film Filter & MicroOptics Technology
- Applications
- OB Truck
- Live Events
- Control Rooms
- Add Internet to Remote Deployment
-
Specifications:
- Channels: 5
- Wavelengths: 1470nm, 1490nm, 1510nm, 1530nm and 1310nm
- 2mm Furcated, 3 Foot Fiber Cables
- Fiber Terminated with LC Connectors
- Channel Spacing 20nm
- Isolation(Demux) Adjacent Channel ≥30 dB
- Non-Adjacent Channel ≥40 dB
- Return Loss: ≥45 dB
- Rugged ABS Enclosure
-
Item Includes:
- One multiplexer/demultiplexer
-
Warranty:
- 1 Year
