Description

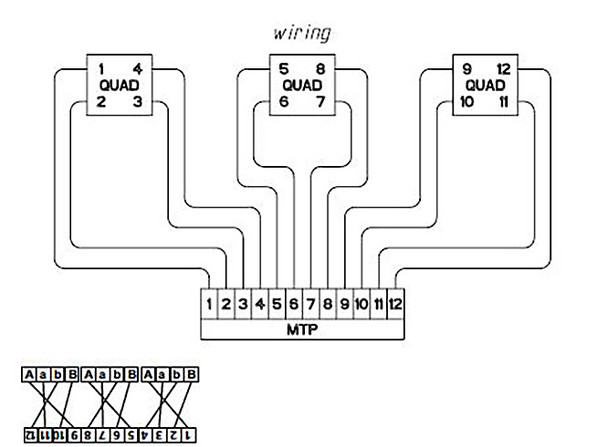

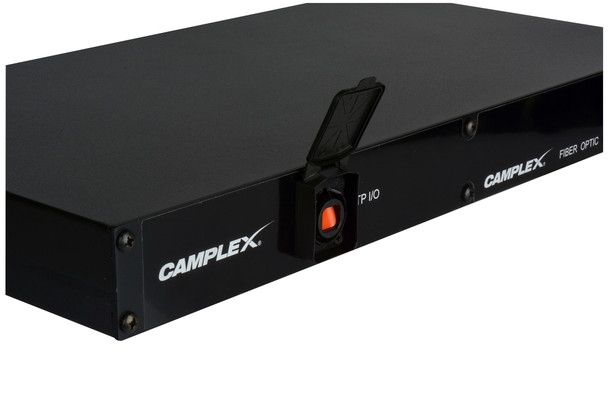

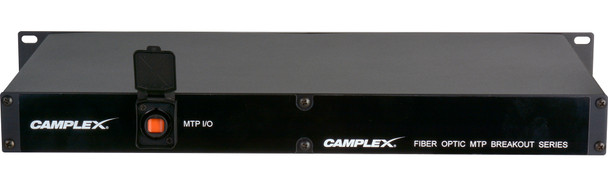

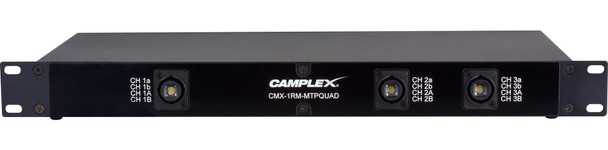

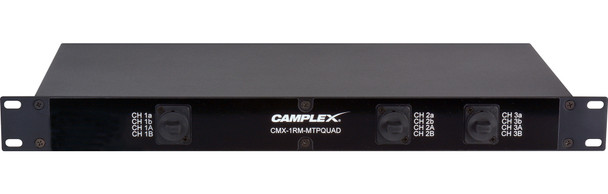

Camplex CMX-1RM-MTPQUAD Rack Mountable Breakout Boxes allow for 12 channel fiber optic cable adaption from opticalCON MTP NO12FDW-A connectors to 3 single mode quad NO4FDW-A chassis mount connectors. Lightweight anodized front and back aluminum box and power coated top and bottom includes dust caps. Camplex breakout boxes are a convenient way to breakout your MTP cables to a variety of other connectivity formats and are ideal for rigorous indoor use. Cable schedule is included.
-
Features:
- Lightweight anodized aluminum box
- Dust and weather-resistant connectors according to IP65 in mated condition
- Low loss opticalCon MTP connectors
- Made and tested in the USA
-
Specifications:
- Internal Camplex MTP Elite breakout cable
- Neutrik opticalCON connectors
- Dimensions: 19"W x 9.125"D x 1.5"H
