Description

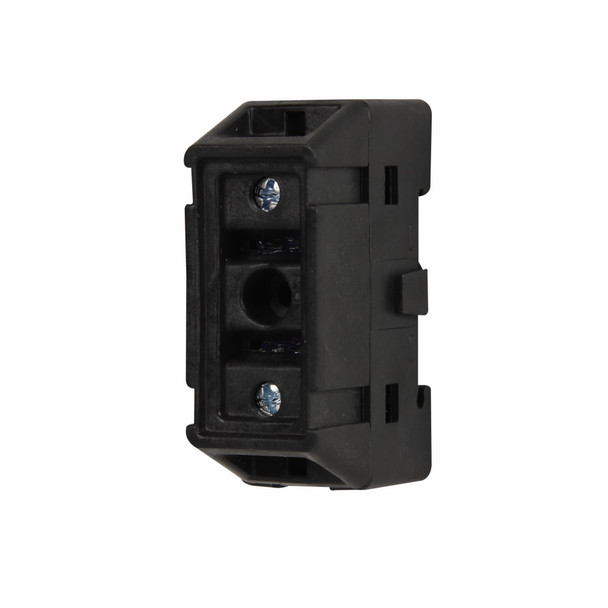

Bussmann TCFH60N Fuse Holder
Bussmann Fuse Holder, Modular, 600 VAC/VDC, 60 A, 1 Pole, Class: CF, 14 to 4 AWG, 10 to 6 AWG Wire, Panel Mount, For Use With: Low Peak Finger Safe CUBE Fuse , Glass Filled Polybutylene Terephthalate, 2.6 in L x 1.03 in W x 1.6 in H
Additional Description: BUSS-TCFH60N (N) CUBEFUSE HOLDER 60 AMP HOLDER NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series TCFH modular fuse holder, Electrical panelboards, Machinery disconnects, Industrial control, Required finger safe systems, 60 A, Class CF, Glass filled PBT, Panel, 600 Vac/dc, Low-peak finger safe fuse
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 60 A |
| Class | CF |
| Color | Gray |
| Dimensions | 2.6 in L x 1.03 in W x 1.6 in H |
| Material | Glass Filled PBT |
| Material | Glass Filled Polybutylene Terephthalate |
| Mounting type | Panel |
| Number of Poles | 1 |
| Suitable For Use With | Low Peak Finger Safe CUBE Fuse |
| Suitable For Use With | Low Peak Finger Safe CUBE Fuse™ |
| Suitable For Use With | Low Peak Finger Safe CUBEFuse™ |
| Suitable For Use With | Low-Peak™ CUBEFuse™ Finger Safe Fuse |
| Temperature Rating (Degrees F) | -40 to 80 |
| Type | Modular |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 4 AWG, 10 to 6 AWG |
| Wire Size | 14 to 4 AWG/10 to 6 AWG |
| Wire Size | 18 to 6 |
