Description

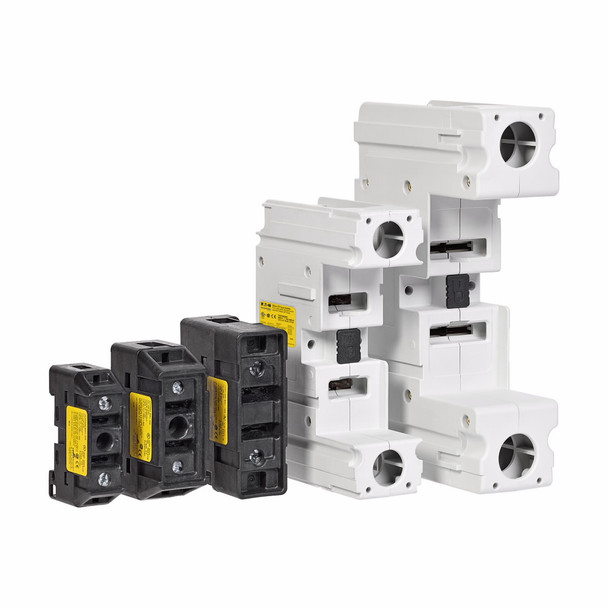

Bussmann TCFH225N
EATON Bussmann CUBEFuse Fuse Holder, Finger Safe Modular, 600 VAC/VDC, 225 A, 1 Pole, Class: CF, Screw, Panel Mount, -40 to 176 deg F, For Use With: CUBE Fuse Low-Peak Time Delay Indicating/Non-Indicating/Fast Acting Fuse, 3.4 in W x 4.2 in D x 11.1 in H
Additional Description: BUSS-TCFH225N cubefuse Holder 225A
Catalog Description: Eaton Bussmann series TCFH modular fuse holder, Electrical panelboards, Machinery disconnects, Industrial control, Required finger safe systems, 225 A, Single-pole, Class CF, 600 Vac/dc, CUBEfuse
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 225 A |
| Class | CF |
| Connection type | Screw |
| Dimensions | 3.4 in W x 4.2 in D x 11.1 in H |
| Mounting type | Panel |
| Number of Poles | 1 |
| Suitable For Use With | CUBE Fuse Low-Peak Time Delay Indicating/Non-Indicating/Fast Acting Fuse |
| Suitable For Use With | CUBE Fuse™ Low-Peak™ Time Delay Indicating/Non-Indicating/Fast Acting Fuse |
| Temperature Rating (Degrees F) | -40 to 176 deg F |
| Type | Finger Safe Modular |
| Voltage Rating | 600 VAC/VDC |
