Description

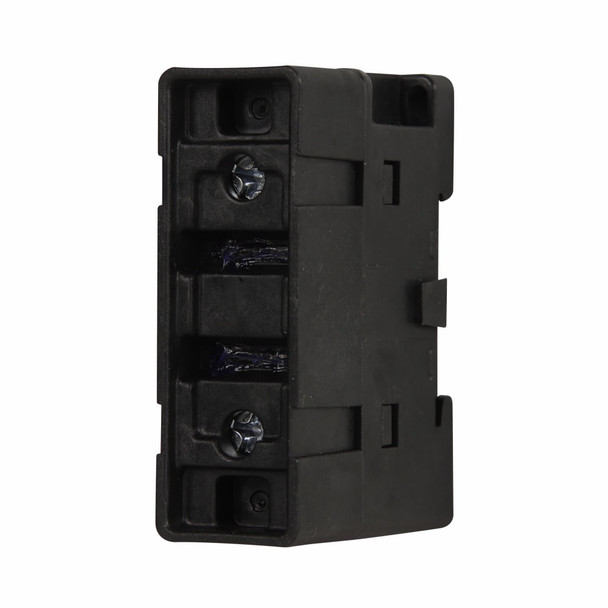

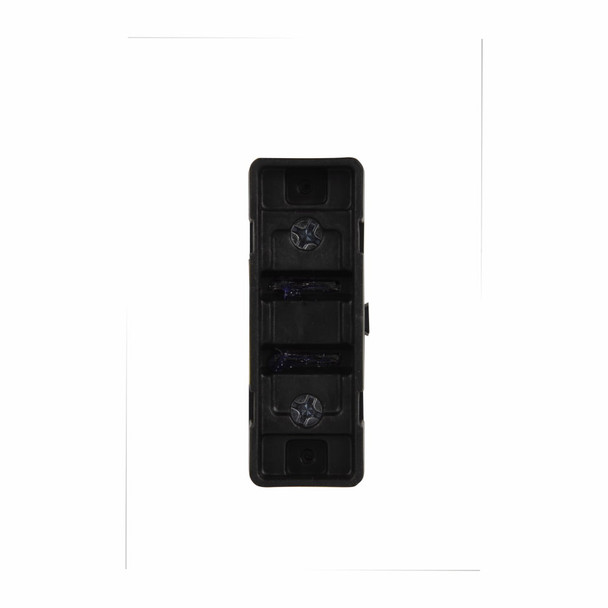

Bussmann TCFH100N Fuse Holder
Bussmann Cartridge Fuse, Finger Safe, 600 VAC/VDC, 100 A, Class: CF, Panel Mount, Glass Filled Polybutylene Terephthalate, 2.91 in L x 1.05 in W x 2.01 in H
Additional Description: BUSS-TCFH100N (N) cubefuse 100 AMP HOLDER HIGH PROFILE CUBFUSE 100 AMP HOLDER HIGH PROFILE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series TCFH modular fuse holder, Electrical panelboards, Machinery disconnects, Industrial control, Required finger safe systems, 100 A, Class CF, Glass filled PBT, Panel, 600 Vac/dc, Low-peak finger safe fuse
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Class | CF |
| Color | Gray |
| Dimensions | 2.91 in L x 1.05 in W x 2.01 in H |
| Material | Glass Filled Polybutylene Terephthalate |
| Mounting type | DIN Rail/Panel |
| Mounting type | Panel |
| Number of Poles | 1 |
| Series | TCFH |
| Suitable For Use With | Low-Peak™ CUBEFuse® Finger Safe Fuse |
| Temperature Rating (Degrees F) | -40 to 80 |
| Type | Finger Safe |
| Type | High Profile |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 |
