Description

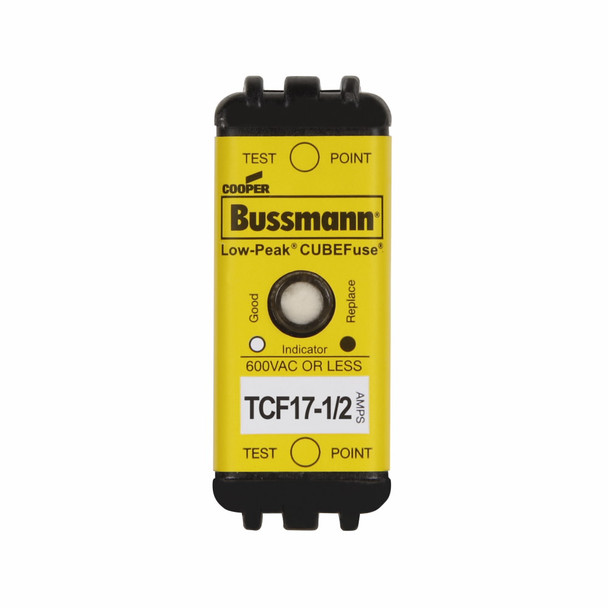

Bussmann TCF17-1/2 Time Delay Fuse
Bussmann Low-Peak CUBEFuse Time Delay Fuse, Current Limiting Inrush Current Withstand, Series: TCF, 17.5 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Body Type, Dual Element, Glass Filled Polyethersulfone, 1.88 in L x 0.75 in W x 1 in H Body Size
Additional Description: BUSS-TCF17-1/2 CUBEFUSE, TCF 17.5A IND
Catalog Description: Eaton Bussmann series TCF fuse, 17.5 A, 60 Hz, 50 Hz, Dual, CF, Black, With Indicator, Blade end, Time delay, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, 35 mm DIN rail,Chassis, 600 V, 300 Vdc
Specifications
| UNSPSC | 39121606 |
|---|---|
| Amperage Rating | 17.5 A |
| Amperage Rating | 17-1/2 |
| Body Type | Square |
| Class | CF |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 100/300 kA |
| Interrupt Rating | 300 kA at 600 VAC, 100 kA at 300 VDC |
| Interrupt Rating | 300/100 |
| Material | Glass Filled Polyethersulfone |
| Mounting type | Chassis/DIN Rail |
| Mounting type | Chassis/DIN Rail/Plug-In |
| Mounting type | DIN Rail |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 10 |
| Response Time | 10 s at 500% |
| Series | TCF |
| Terminal Type | Blade |
| Terminal Type | Radial Blade Plug-In |
| Type | Current Limiting Inrush Current Withstand |
| Type | Inrush Current Withstand Time Delay |
| Voltage Rating | 600 VAC, 300 VDC |
| Voltage Rating | 600 VAC/300 VDC |
