Description

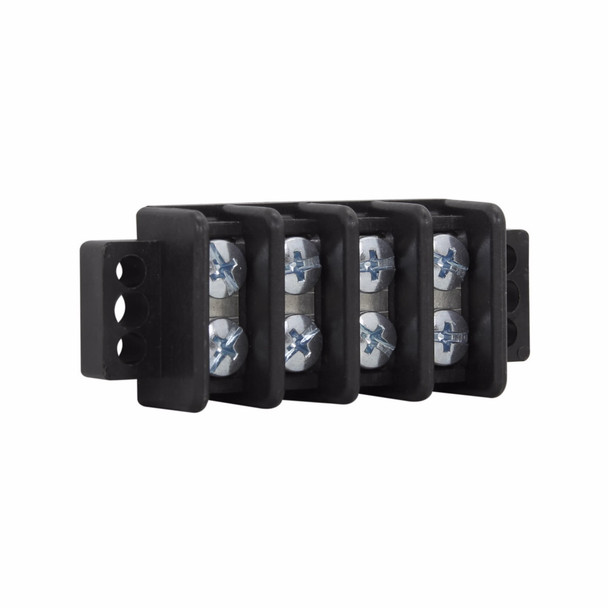

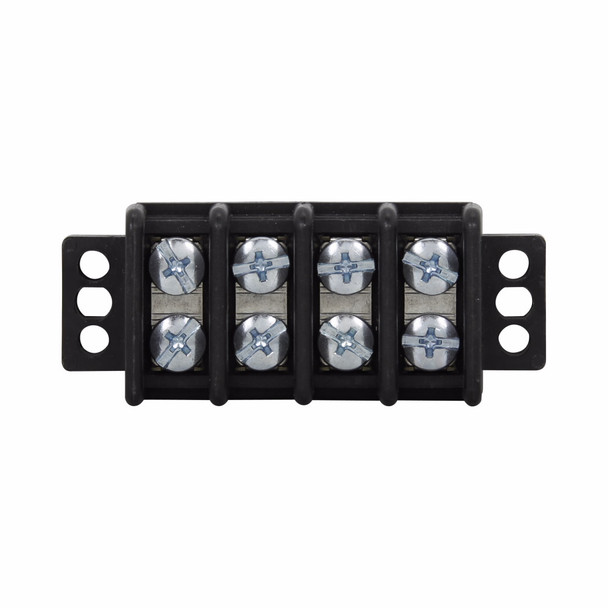

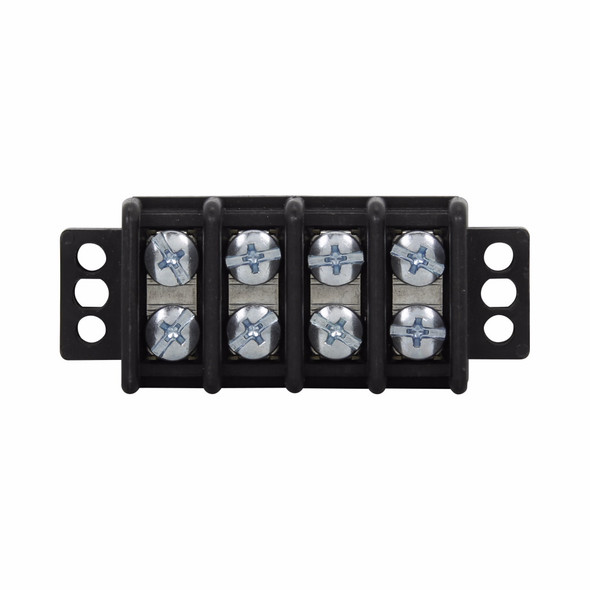

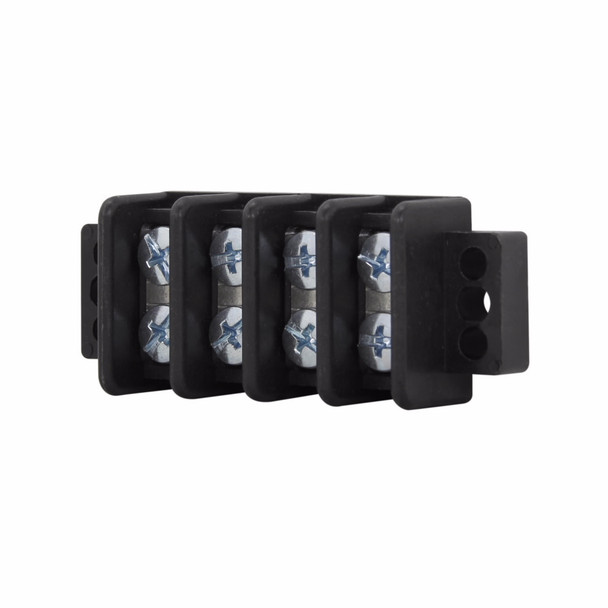

Bussmann TB345-04L1
Bussmann Terminal Block Strips and Barrier Block, 600 V, 45 A, 0.562 in Center Spacing, 20 in-lb, -40 to 130 deg C, Molded Thermoplastic, Black, 3.25 in L x 1.33 in W x 0.81 in H
Additional Description: BUSS-TB345-04L1 BARRIER BLOCK
Catalog Description: Eaton Bussmann TB345 series panel mount terminal block connector, Breakdown voltage 7500V, 600V, 45A, Barrier, Four-pole, Black, Molded thermoplastic base, tin-plated brass terminal, zinc-plated steel philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 45 A |
| Color | Black |
| Dimensions | 3.25 in L x 1.33 in W x 0.81 in H |
| Material | Molded Thermoplastic |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 20 in-lb |
| Voltage Rating | 600 V |
