Description

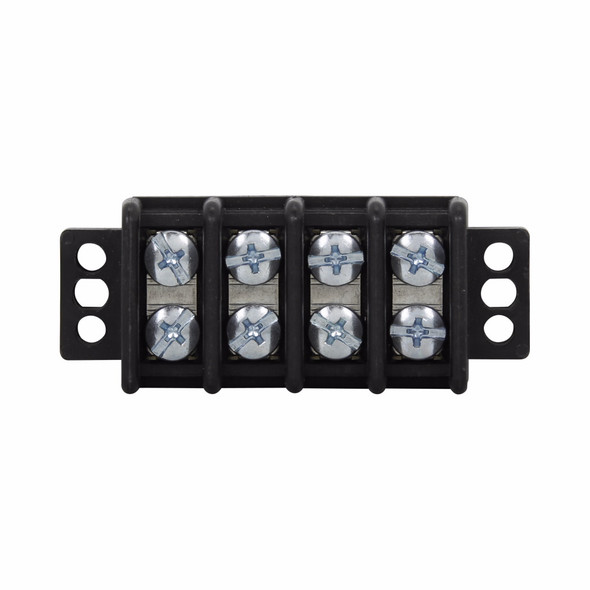

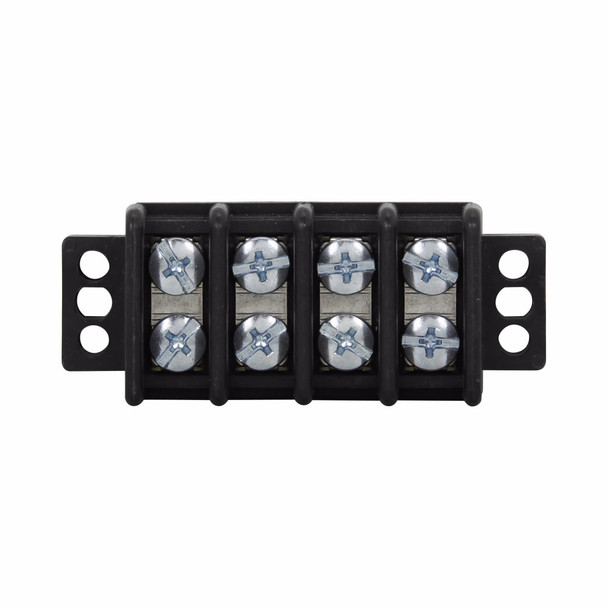

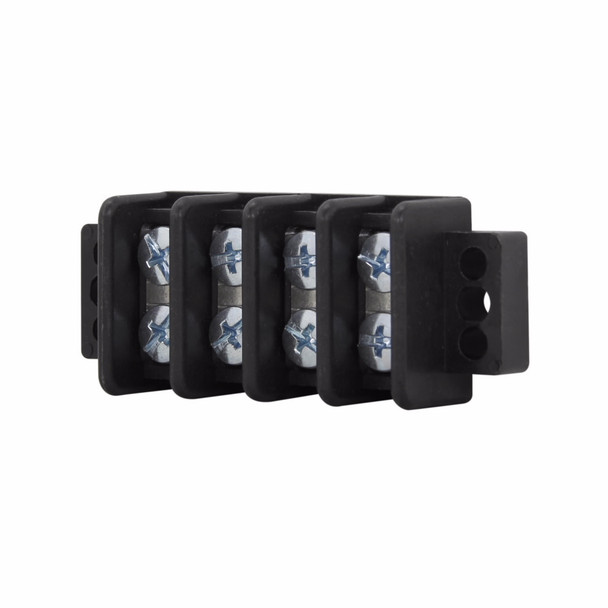

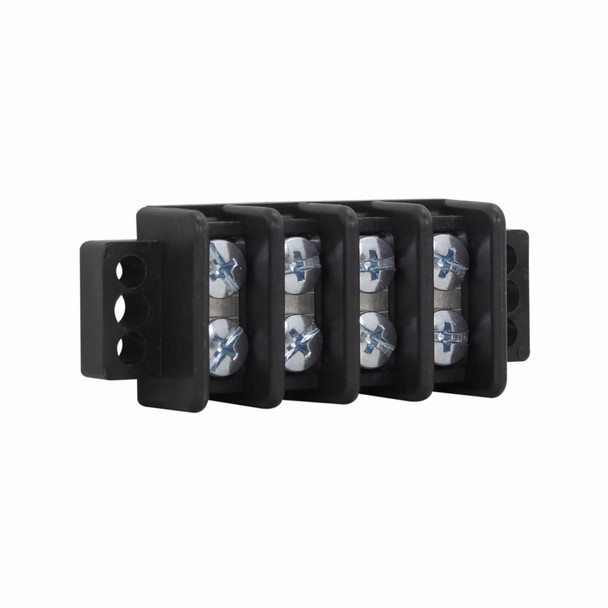

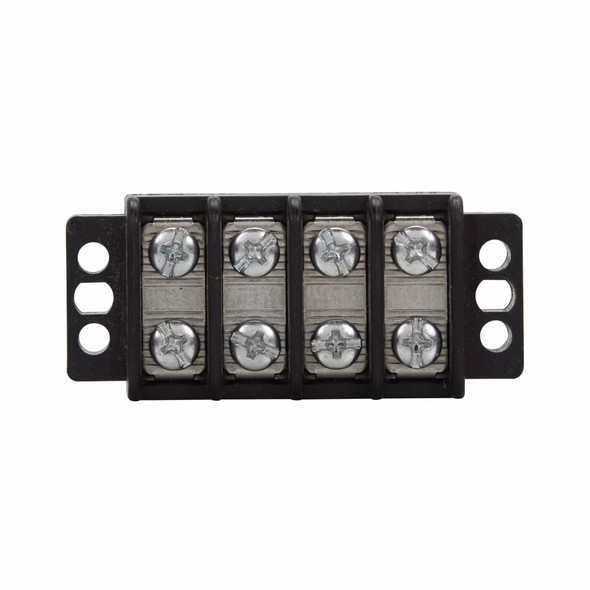

Bussmann TB345-04 Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, Double Row, 600 V, 45 A, 20 in-lb, Threaded Mount, #10-32 TPI Screw, -40 to 130 deg C, Black, 3.25 in L x 1.33 in W x 0.81 in H
Additional Description: BUSS-TB345-04 BARRIER BLOCK
Catalog Description: Eaton Bussmann TB345 series panel mount terminal block connector, Breakdown voltage 7500V, 600V, 45A, Double row, barrier, Four-pole, #10-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 45 |
| Amperage Rating | 45 A |
| Color | Black |
| Connection type | #10-32 TPI Screw |
| Connection type | 10 to 32 TPI Screw |
| Dimensions | 3.25 in L x 1.33 in W x 0.81 in H |
| Mounting type | Threaded |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 20 |
| Torque Rating | 20 in-lb |
| Type | Double Row |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
