Description

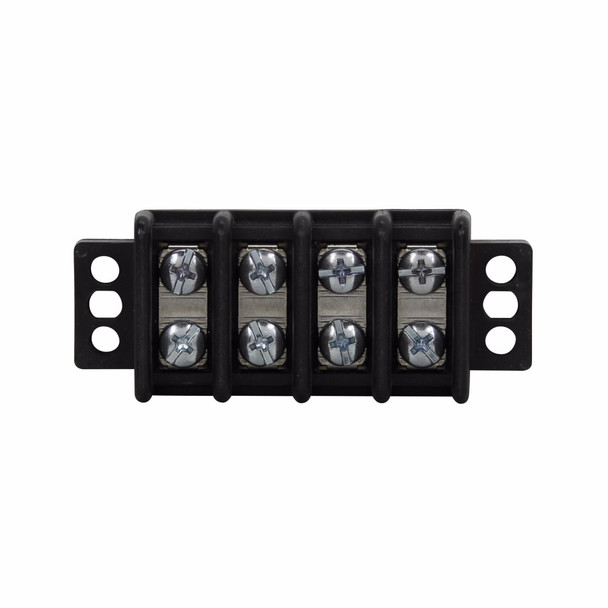

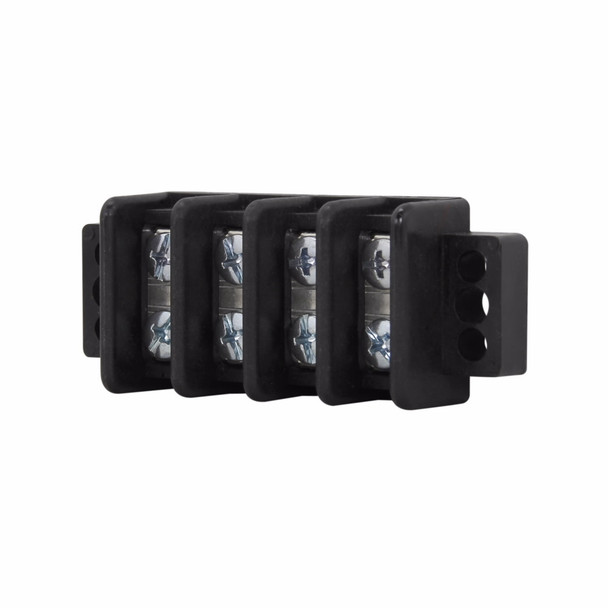

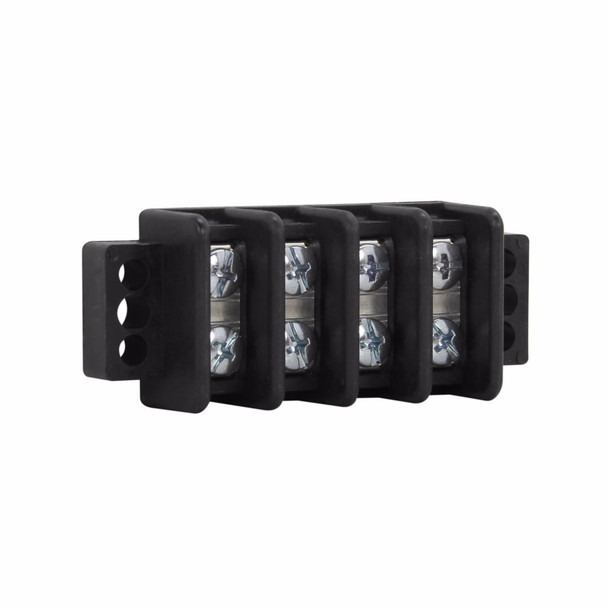

Bussmann TB300-24
Bussmann Terminal Block Strips and Barrier Block, Double Row, 600 V, 30 A, 16 in-lb, #8-32 TPI Screw, -40 to 130 deg C, Black, 3.25 in L x 1.33 in W x 0.81 in H
Additional Description: BUSS-TB300-24 BARRIER BLOCK
Catalog Description: Eaton Bussmann TB300 series panel mount terminal block connector, Breakdown voltage 7500V, 600V, 30A, Double row, barrier, 24-pole, #8-32 TPI Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #8-32 TPI Screw |
| Dimensions | 3.25 in L x 1.33 in W x 0.81 in H |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 16 in-lb |
| Type | Double Row |
| Voltage Rating | 600 V |
