Description

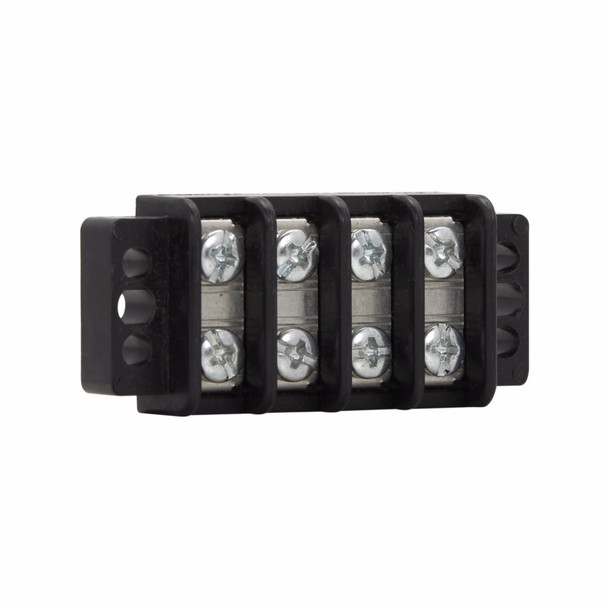

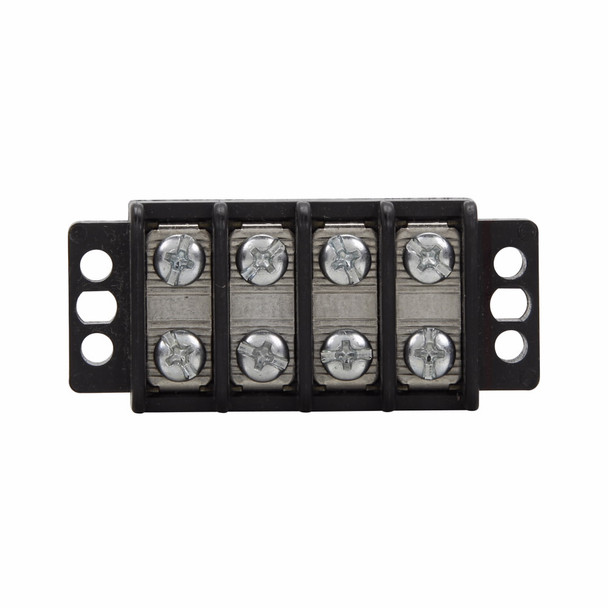

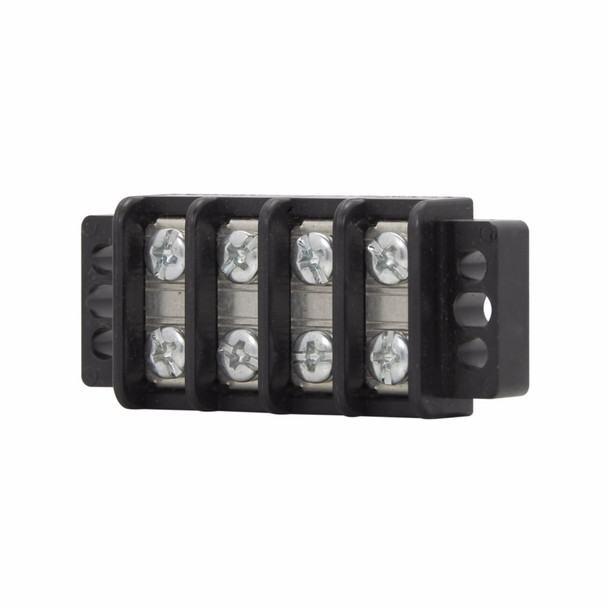

Bussmann TB200-16 Terminal Block
Bussmann Terminal Block, 16-Pole Double Row, Series: TB200, 300 V, 30 A, 22 to 12 AWG Wire, 0.437 in Center Spacing, Standard Barrier Style, #6-32 Screw, 9 in-lb, Panel Mount, Phillips Slot Screw, -40 to 130 deg C, Thermoplastic, Black, 7.75 in L x 1.12 in W x 0.31 in H
Additional Description: BUSS-TB200-16 BARRIER BLOCK
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 300V, 30A, Double row, barrier, 16-pole, #6-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Barrier Style | Standard |
| Color | Black |
| Connection type | Philips Slot Screw |
| Connection type | Phillips Slot Screw |
| Connection type | Phillips® Slot Screw |
| Dimensions | 7.75 in L x 1.12 in W x 0.31 in H |
| Material | Thermoplastic |
| Mounting type | Panel |
| Screw Size | #6-32 |
| Series | TB200 |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | 16-Pole Double Row |
| Voltage Rating | 300 |
| Voltage Rating | 300 V |
| Wire Size | 22 to 12 |
| Wire Size | 22 to 12 AWG |
