Description

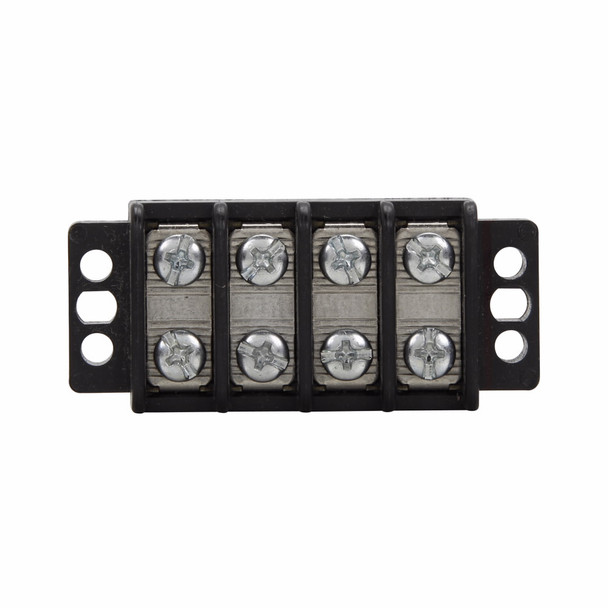

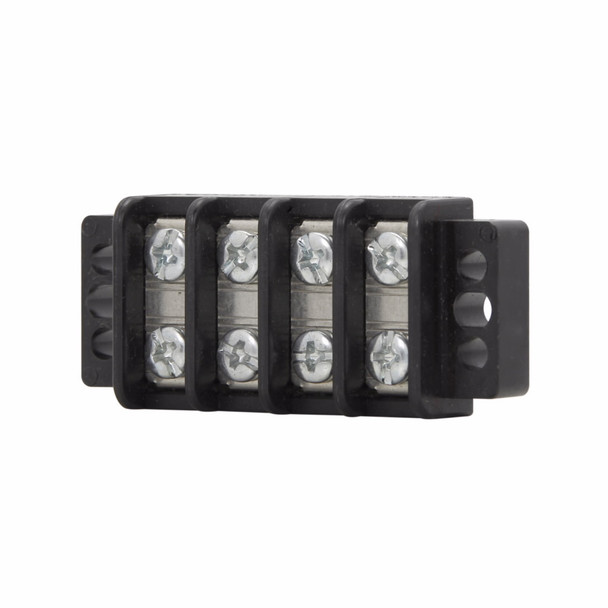

Bussmann TB200-14SS Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, 300 V, 30 A, 0.437 in Center Spacing, 9 in-lb, -40 to 130 deg C, Brass/Steel/Thermoplastic, Black, 7 in L x 4 in W x 8-1/2 in H
Additional Description: UNDR-TB200-14SS (N) BARRIER BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 300V, 30A, Barrier, 14-pole, Black, Molded thermoplastic base, tin-plated brass terminal, stainless steel SEMS philslot
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Dimensions | 7 in L x 4 in W x 8-1/2 in H |
| Material | Brass/Steel/Thermoplastic |
| Material | Molded Thermoplastic |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Voltage Rating | 300 |
| Voltage Rating | 300 V |
