Description

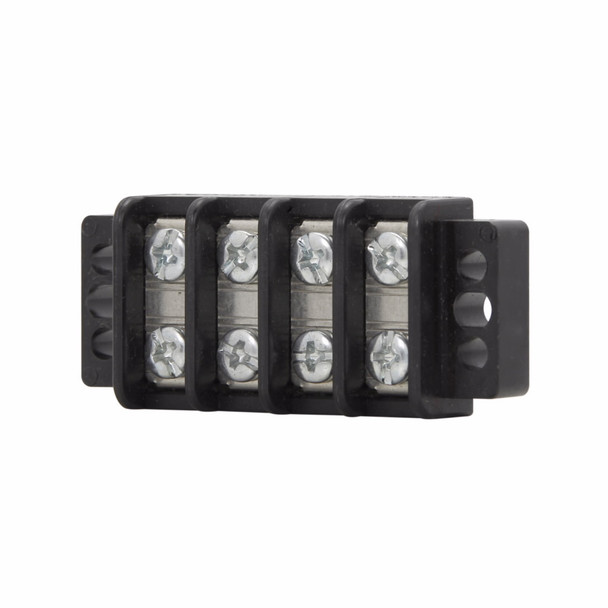

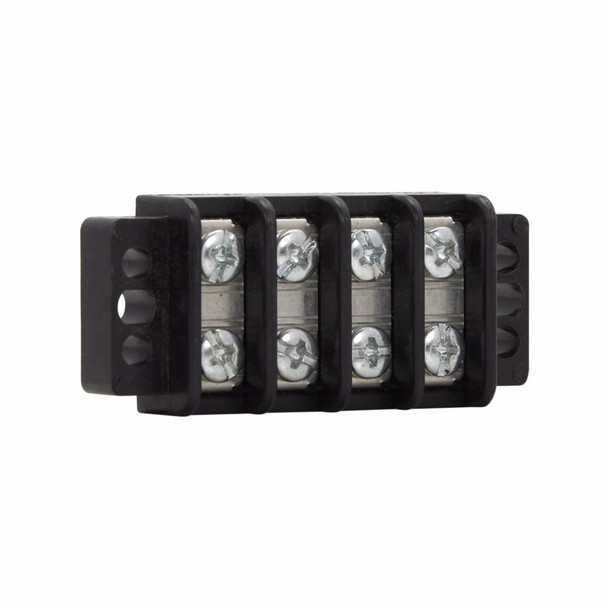

Bussmann TB200-09SS Terminal Block
Bussmann Terminal Block, 9-Pole Double Row, Series: TB200, 300 VAC, 30 A, 22 to 12 AWG Wire, 7/16 in Center Spacing, #6-32 Screw, 9 in-lb, Panel Mount, Screw, -40 to 130 deg C, Thermoplastic, Black, 4.69 in L x 1.12 in W x 0.56 in H
Additional Description: UNDR-TB200-09SS (N) BARRIER BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Nine-pole, Torque rating 9 lb-in, Breakdown voltage 4800V, 300V, 30A, Double row, Black thermoplastic, tin over brass terminal plating, stainless steel SEMS philslot screw
Specifications
| UNSPSC | 39121627 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | Screw |
| Dimensions | 4.69 in L x 1.12 in W x 0.56 in H |
| Material | Thermoplastic |
| Mounting type | Panel |
| Screw Size | #6-32 |
| Series | TB200 |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | 9-Pole Double Row |
| Voltage Rating | 300 |
| Voltage Rating | 300 VAC |
| Wire Size | 22 to 12 |
| Wire Size | 22 to 12 AWG |
