Description

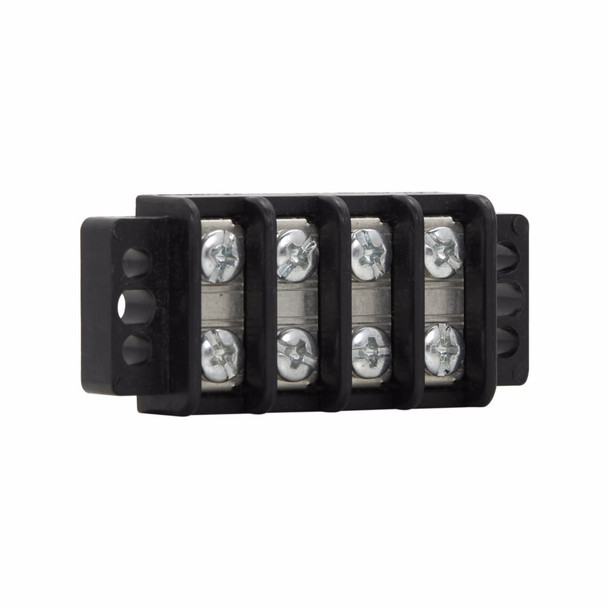

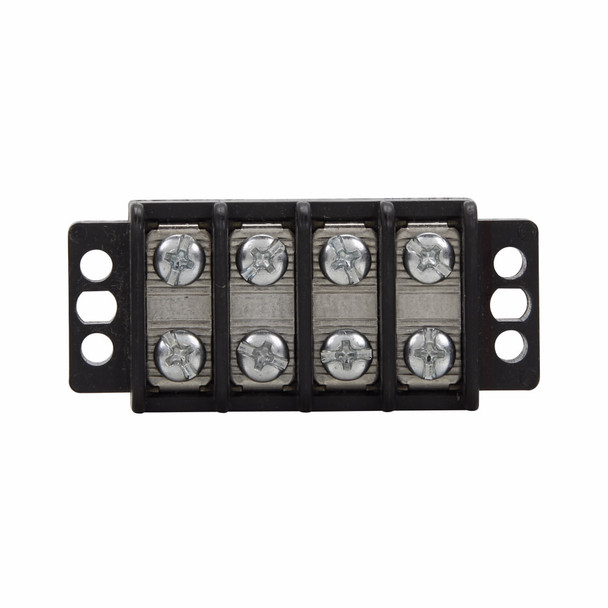

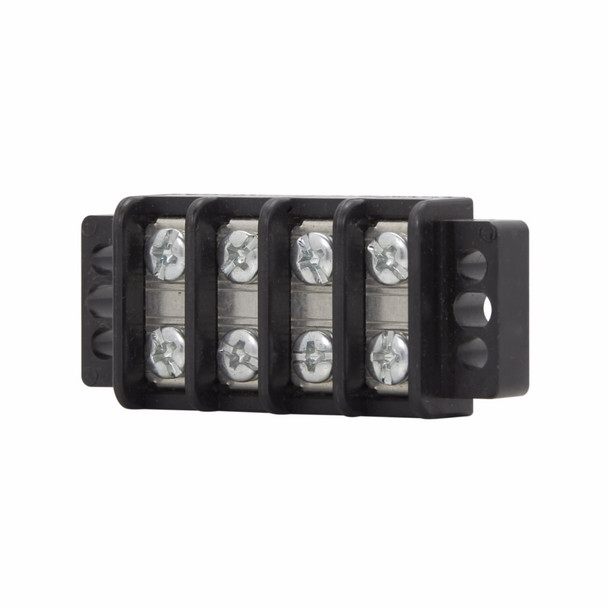

Bussmann TB200-06SP Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, Double Row, 300 V, 30 A, 9 in-lb, Panel Mount, #6-32 TPI Screw, -40 to 130 deg C, Brass/Steel/Thermoplastic, Black, 3.38 in L x 1.12 in W x 0.56 in H
Additional Description: BUSS-TB200-06SP BARRIER BLOCK
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 300V, 30A, Double row, barrier, Six-pole, #6-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Zinc-plated Steel SEMS philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #6-32 TPI Screw |
| Connection type | 6 to 32 TPI Screw |
| Dimensions | 3.38 in L x 1.12 in W x 0.56 in H |
| Material | Brass/Steel/Thermoplastic |
| Material | Tin Plated Brass |
| Mounting type | Panel |
| Mounting type | Threaded |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | Double Row |
| Voltage Rating | 300 |
| Voltage Rating | 300 V |
