Description

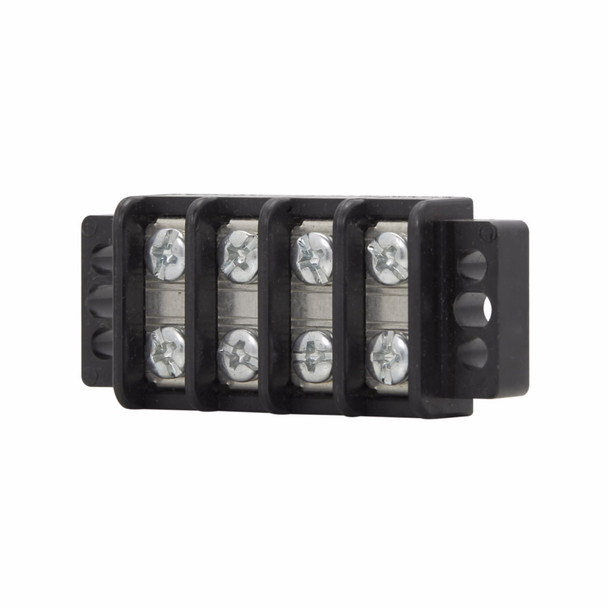

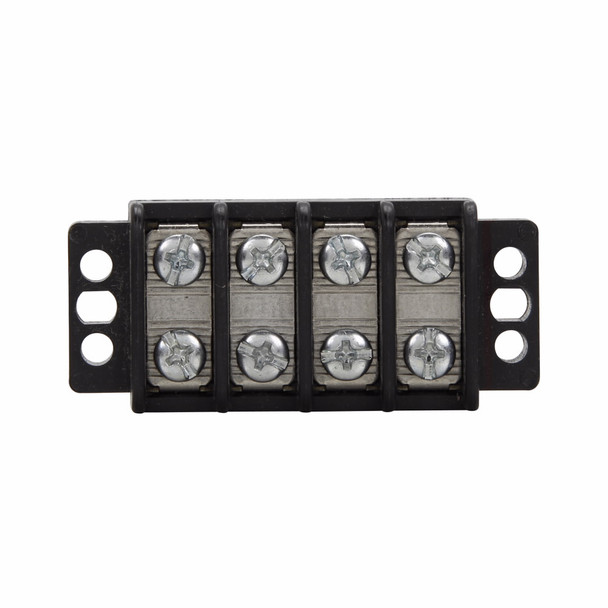

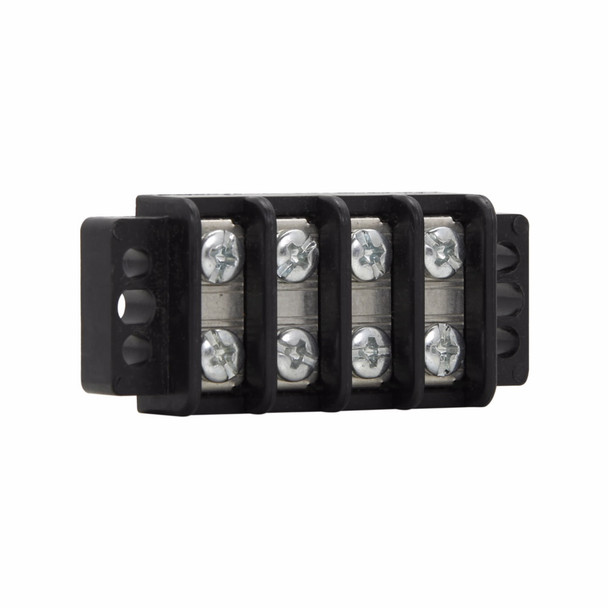

Bussmann TB200-06BS Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, 300 V, 30 A, 0.437 in Center Spacing, 9 in-lb, -40 to 130 deg C, Tin Plated Brass Terminal, Black, 7 in L x 4 in W x 8-1/2 in H
Additional Description: BUSS-TB200-06BS BARRIER BLOCK
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 300V, 30A, Barrier, Six-pole, Black, Tin-plated brass terminal, nickel-plated brass SEMS philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Dimensions | 7 in L x 4 in W x 8-1/2 in H |
| Material | Tin Plated Brass |
| Material | Tin Plated Brass Terminal |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Voltage Rating | 300 |
| Voltage Rating | 300 V |
