Description

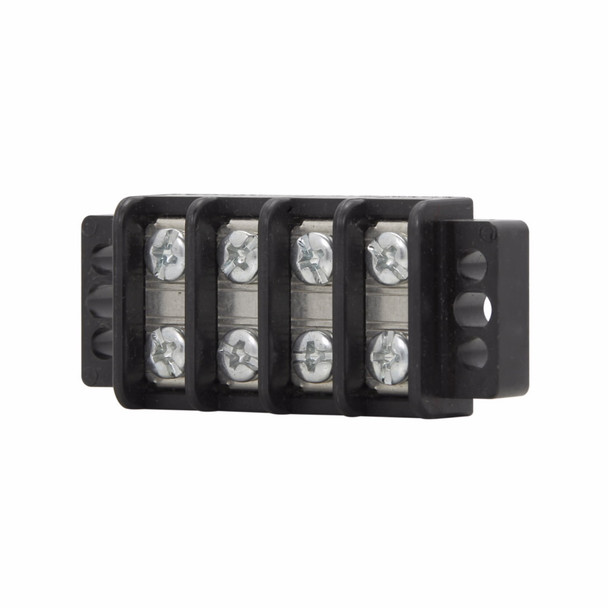

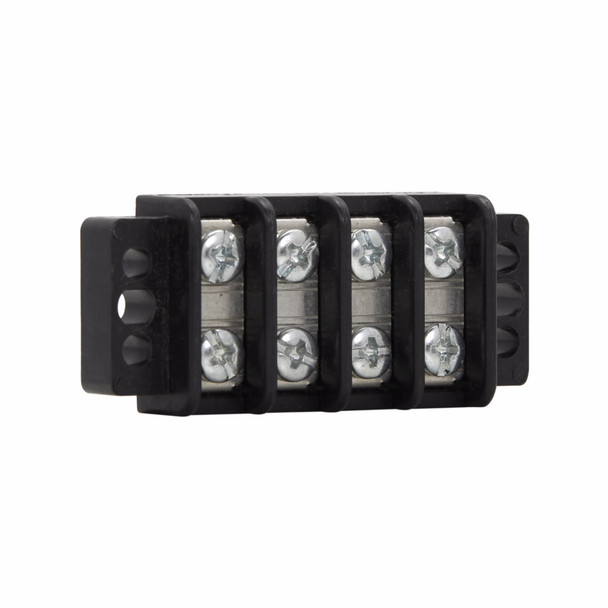

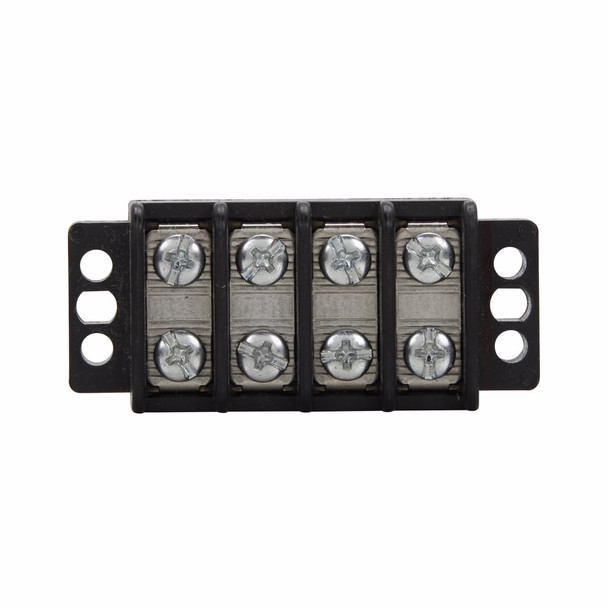

Bussmann TB200-05 Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, Double Row, 300 V, 30 A, 9 in-lb, Threaded Mount, #6-32 TPI Screw, -40 to 130 deg C, Black, 7 in L x 4 in W x 8-1/2 in H
Additional Description: UNDR-TB200-05 (N) BARRIER BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann TB200 series panel mount terminal block connector, Breakdown voltage 4800V, 300V, 30A, Double row, barrier, Five-pole, #6-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #6-32 TPI Screw |
| Connection type | 6 to 32 TPI Screw |
| Dimensions | 7 in L x 4 in W x 8-1/2 in H |
| Mounting type | Threaded |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | Double Row |
| Voltage Rating | 300 |
| Voltage Rating | 300 V |
