Description

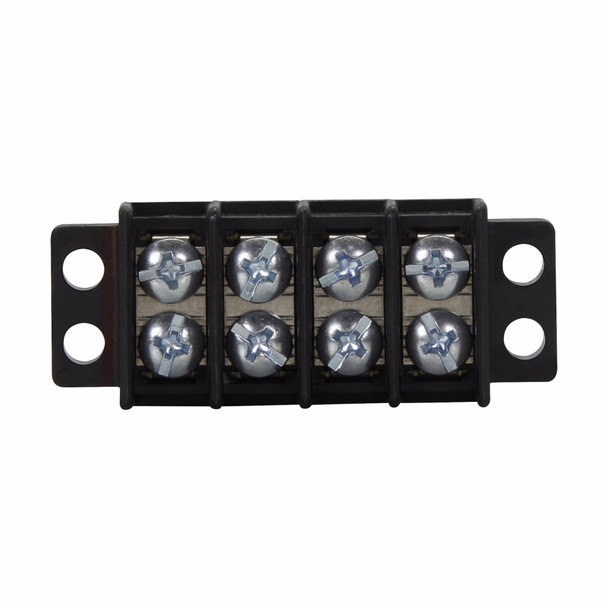

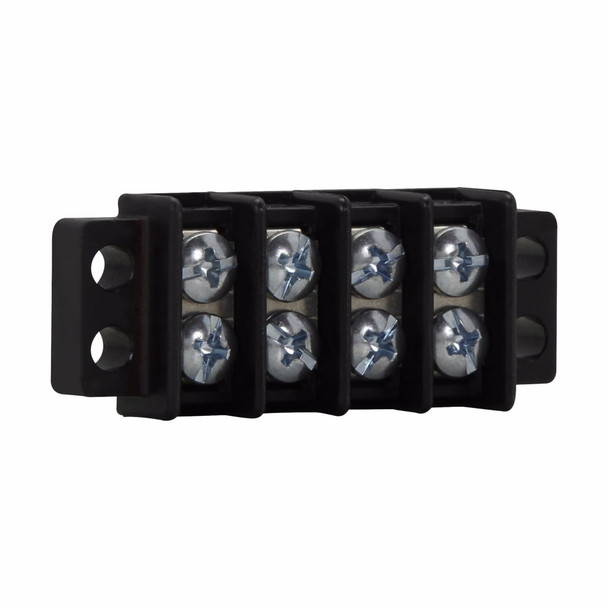

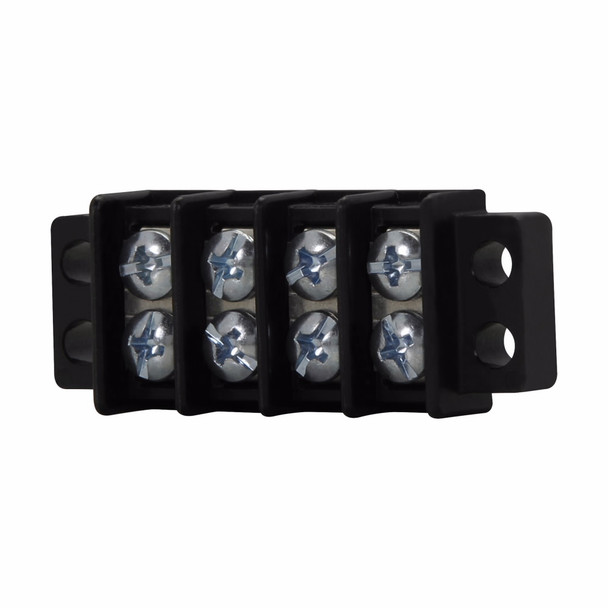

Bussmann TB100-14 Terminal Block Strips and Barrier Block
Bussmann Terminal Block Strips and Barrier Block, Double Row, 300 V, 30 A, 9 in-lb, Threaded Mount, #6-32 TPI Screw, -40 to 130 deg C, Black, 2.16 in L x 0.88 in W x 0.41 in H
Additional Description: BUSS-TB100-14 BARRIER BLOCK
Catalog Description: Eaton Bussmann TB100 series panel mount terminal block connector, Breakdown voltage 3600V, 300V, 30A, Double row, barrier, 14-pole, #6-32 TPI Screw, Screw, Black, Tin-plated brass terminal, Zinc-plated Steel philslot screw
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | Black |
| Connection type | #6-32 TPI Screw |
| Connection type | 6 to 32 TPI Screw |
| Dimensions | 2.16 in L x 0.88 in W x 0.41 in H |
| Mounting type | Threaded |
| Temperature Rating (Degrees F) | -40 to 130 |
| Temperature Rating (Degrees F) | -40 to 130 deg C |
| Torque Rating | 9 |
| Torque Rating | 9 in-lb |
| Type | Double Row |
| Voltage Rating | 300 |
| Voltage Rating | 300 V |
