Description

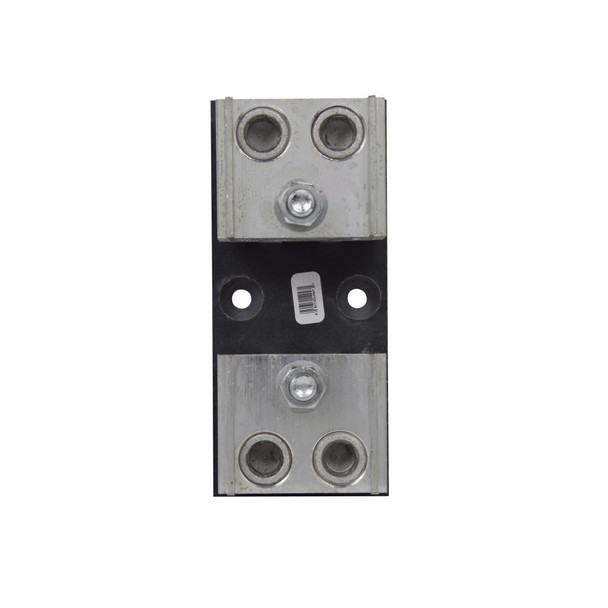

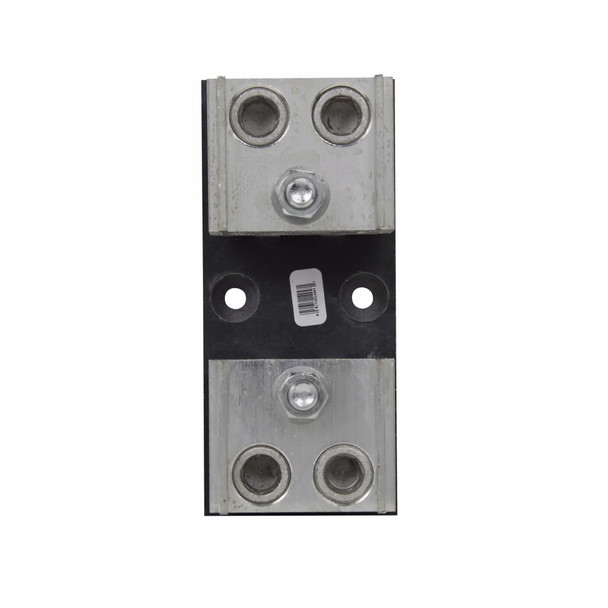

Bussmann T60600-1C
Additional Description: BUSS-T60600-1C (N) CLASS T FUSEBLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series Class T modular fuse block, 600 Vac/Vdc or less individual control circuits, 401-600 A, Box lug, 200 kAIC, Phenolic, #2/0-600 kcmil Cu/Al
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 401 to 600 |
| Amperage Rating | 401 to 600 A |
| Class | T |
| Color | Black |
| Connection type | Box Lug |
| Dimensions | 6.75 in L x 3 in W x 3.44 in H |
| Fuse Diameter | 1-1/4 |
| Fuse Diameter | 1-1/4 in |
| Fuse Length | 3.98 |
| Fuse Length | 3.98 in |
| Material | Glass Polyester/Phenolic |
| Material | Phenolic |
| Mounting type | Chassis |
| Number of Poles | 1 |
| Series | T600 |
| Suitable For Use With | JJS Cartridge Fuse |
| Suitable For Use With | JJS Class T Fuse |
| Suitable For Use With | JJS Series Cartridge Fuse |
| Type | Modular Open |
| Type | Open |
| Type | Open Style |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 4/0 AWG to 600 kcmil |
| Wire Size | 600 |
| Wire Size | 600 kcmil |
