Description

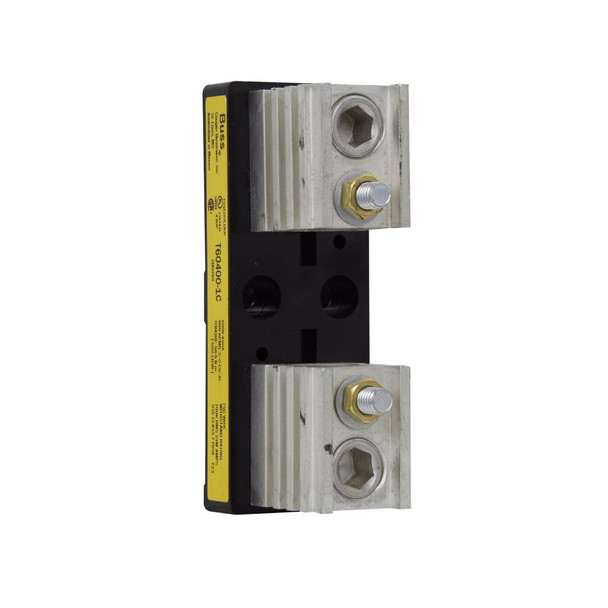

Bussmann T60400-1C
Bussmann Fuse Block, Modular Open, Series: T600, 600 VAC/VDC, 201 to 400 A, 1 Pole, Class: T, Box Lug, 600 kcmil Wire, Chassis Mount, 3.63 in Fuse Length, 1 in Fuse Dia, For Use With: JJS Series Cartridge Fuse, Glass Polyester, 6 in L x 2.25 in W x 3.06 in H
Additional Description: BUSS-T60400-1C CLASS T FUSEBLOCK
Catalog Description: Eaton Bussmann series Class T modular fuse block, 201-400 A, Class T, Box lug, 200 kAIC, Glass polyester, 600 Vac/dc, #2/0-600 kcmil Cu/Al
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 201 to 400 |
| Amperage Rating | 201 to 400 A |
| Class | T |
| Color | Black |
| Connection type | Box Lug |
| Dimensions | 6 in L x 2.25 in W x 3.06 in H |
| Fuse Diameter | 1 |
| Fuse Diameter | 1 in |
| Fuse Length | 3.63 |
| Fuse Length | 3.63 in |
| Material | Glass Polyester |
| Mounting type | Chassis |
| Number of Poles | 1 |
| Series | T600 |
| Suitable For Use With | JJS Cartridge Fuse |
| Suitable For Use With | JJS Class T Fuse |
| Suitable For Use With | JJS Series Cartridge Fuse |
| Type | Modular Open |
| Type | Open |
| Type | Open Style |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 2/0 AWG to 600 kcmil |
| Wire Size | 600 |
| Wire Size | 600 kcmil |
