Description

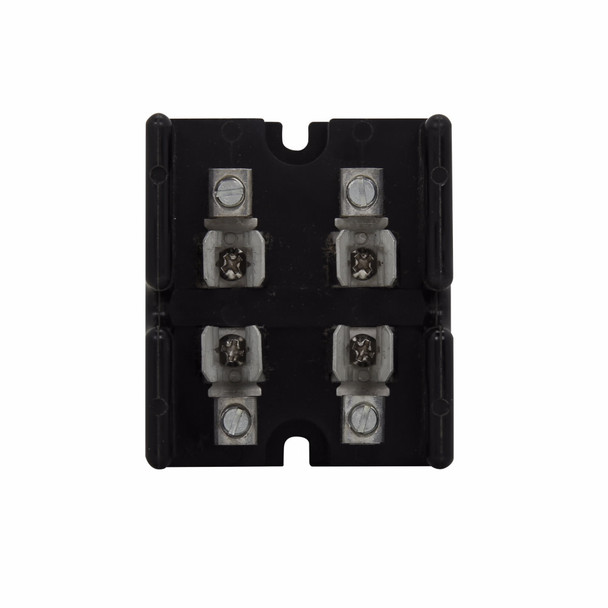

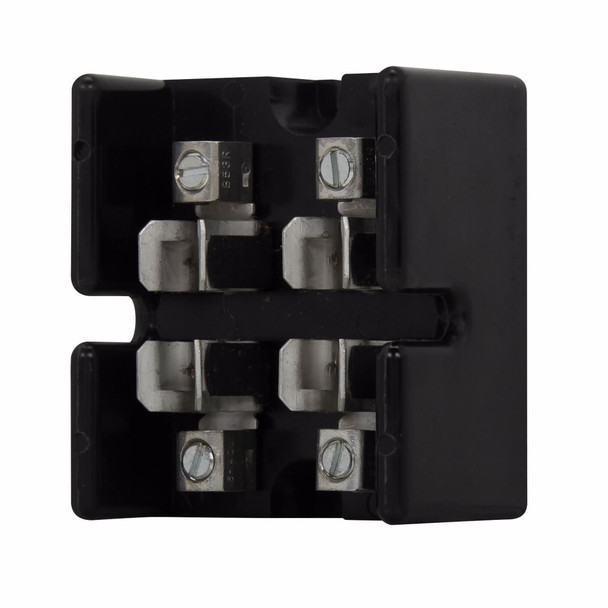

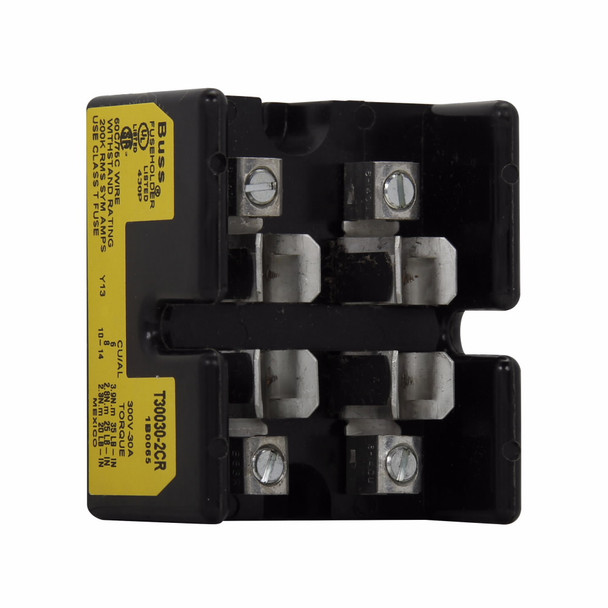

Bussmann T30030-2CR Fuse Block
Bussmann Fuse Block, Modular Open, Series: T600, 300 VAC/VDC, 0 to 30 A, 2 Pole, Class: T, Box Lug, 2 AWG Wire, Chassis Mount, 0.88 in Fuse Length, 0.41 in Fuse Dia, For Use With: JJN Series Cartridge Fuse, Glass Polyester, 2.41 in L x 1.63 in W x 2.75 in H
Additional Description: BUSS-T30030-2CR BUSS FUSEBLOCK WAS 1B0065
Catalog Description: Eaton Bussmann series Class T modular fuse block, CR, 300 Vac/Vdc or less individual control circuits, 0-30 A, Two-pole, Class T, Box lug, 200 kAIC, Glass polyester, #2 AWG Cu/Al
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 0 to 30 A |
| Amperage Rating | 0.5 to 30 |
| Amperage Rating | 1/2 to 30 |
| Class | T |
| Color | Black |
| Connection type | Box Lug |
| Connection type | Box Lug/Reinforced Spring |
| Dimensions | 2.41 in L x 1.63 in W x 2.75 in H |
| Fuse Diameter | 0.41 |
| Fuse Diameter | 0.41 in |
| Fuse Length | 0.88 |
| Fuse Length | 0.88 in |
| Material | Glass Polyester |
| Mounting type | Chassis |
| Number of Poles | 2 |
| Series | T300 |
| Series | T600 |
| Suitable For Use With | JJN Cartridge Fuse |
| Suitable For Use With | JJN Class T Fuse |
| Suitable For Use With | JJN Series Cartridge Fuse |
| Type | Modular Open |
| Type | Open |
| Type | Open Style |
| Voltage Rating | 300 |
| Voltage Rating | 300 VAC/VDC |
| Wire Size | 2 |
| Wire Size | 2 AWG |
