Description

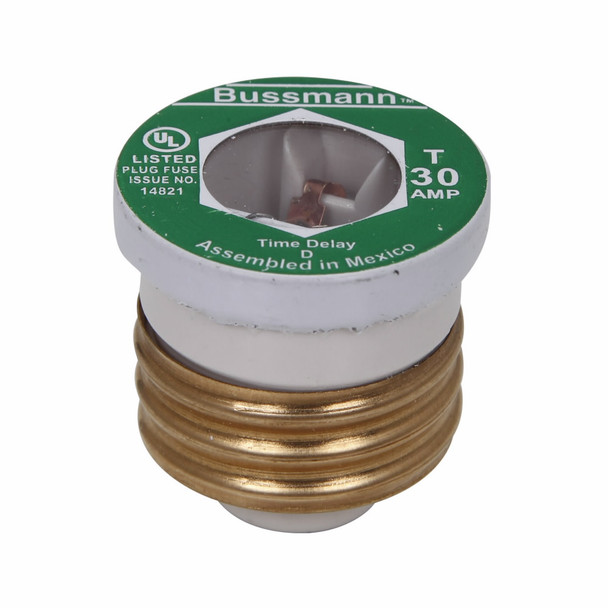

Bussmann T-30 Plug Fuse
Bussmann Fusetron Plug Fuse, Heavy Duty Time Delay, Series: T Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 30 A, 125 VAC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Stud Terminal, Threaded Mount, Round Body Type, Dual Element, Plastic Body/Brass Thread
Additional Description: BUSS-T-30 FUSETRON DUAL ELEMENT FUSE TYPE T
Catalog Description: Eaton Bussmann series Type T plug fuse, plug fuse, time delay, heavy duty, 30 A, 125 Vac, 10 kAIC (RMS Symmetrical) interrupt rating, 10 kA short circuit rating, threaded mount, duel element, plastic body, brass thread, edison base
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Body Type | Round |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 |
| Interrupt Rating | 10 kAIC |
| Material | Plastic |
| Material | Plastic Body/Brass Thread |
| Mounting type | Threaded |
| Rejection/Non-Rejection | Non-Rejection |
| Series | T Series |
| Short Circuit Current Rating (kA) | 10 kA |
| Terminal Type | Stud |
| Type | Heavy Duty Time Delay |
| Type | Type T Heavy Duty Time Delay |
| Voltage Rating | 125 |
| Voltage Rating | 125 VAC |
