Description

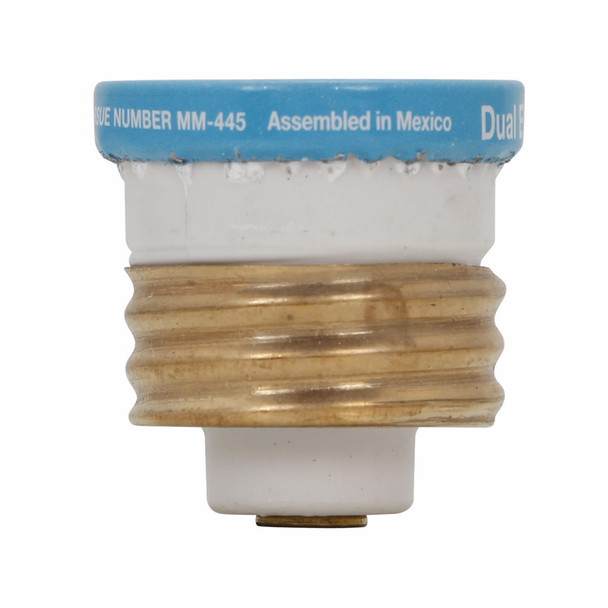

Bussmann T-1-1/4 Edison Fusetron Plug Fuse
Bussmann Fusetron™ Plug Fuse, Heavy Duty Low Voltage Time Delay, Series: T Series, Indicating/Non-Indicating: Non-Indicating, 1.25 A, 125 VAC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Threaded Mount, Edison Base Body Type, Dual Element, Plastic, 12.88 in L x 6.75 in W x 12.56 in H Body Size
Additional Description: BUSS-T-1-1/4 FUSETRON DUAL ELEMENT
Catalog Description: Eaton Bussmann series Type T plug fuse, plug fuse, time delay, heavy duty, 1-1/4 A, 125 Vac, 10 kAIC (RMS Symmetrical) interrupt rating, 10 kA short circuit rating, threaded mount, duel element, plastic body, brass thread, edison base
Specifications
| UNSPSC | 39121605 |
|---|---|
| Amperage Rating | 1.25 A |
| Amperage Rating | 1-1/4 A |
| Body Type | Edison Base |
| Body Type | Round |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10 kA |
| Interrupt Rating | 10 kAIC |
| Material | Plastic |
| Mounting type | Threaded |
| Rejection/Non-Rejection | Non-Rejection |
| Series | T Series |
| Short Circuit Current Rating (kA) | 10 kA |
| Terminal Type | Stud |
| Type | Heavy Duty Low Voltage Time Delay |
| Type | Type T Heavy Duty Time Delay |
| Voltage Rating | 125 VAC |
