Description

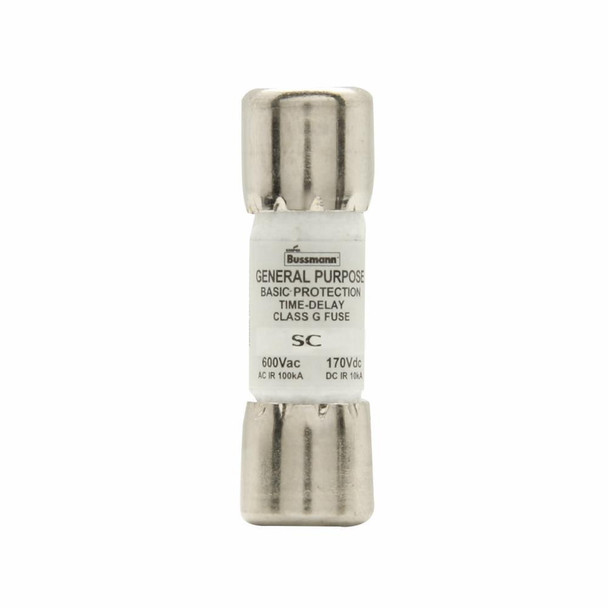

Bussmann SC-6 General Purpose Fuse
Bussmann General Purpose Fuse, Current Limiting Fast Acting Time Delay, Series: SC Series, Non-Indicating, Rejection, 6 A, 600 VAC, 170 VDC, 10/100 kA Interrupt, Class: G, 12 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, 0.41 in Dia x 1.31 in L Body
Additional Description: BUSS-SC-6 BUSS SC FUSE CLASS G CLASS G
Catalog Description: Eaton Bussmann series SC fuse, Current-limiting fast acting fuse, Rejection style, 6 A, Class G, Non-indicating, Ferrule end x ferrule end, 100 kAIC at 600 Vac,10 kAIC at 170 Vdc, Standard, 600 V, 170 Vdc
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 6 |
| Amperage Rating | 6 A |
| Body Type | Cartridge |
| Class | G |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10/100 |
| Interrupt Rating | 10/100 kA |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 12 |
| Response Time | 12 s |
| Series | SC Series |
| Terminal Type | Ferrule |
| Type | Current Limiting Fast Acting Time Delay |
| Voltage Rating | 600 VAC, 170 VDC |
