Description

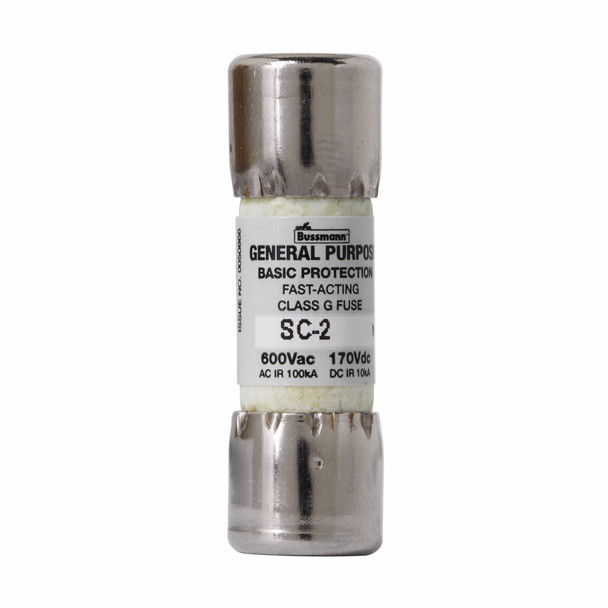

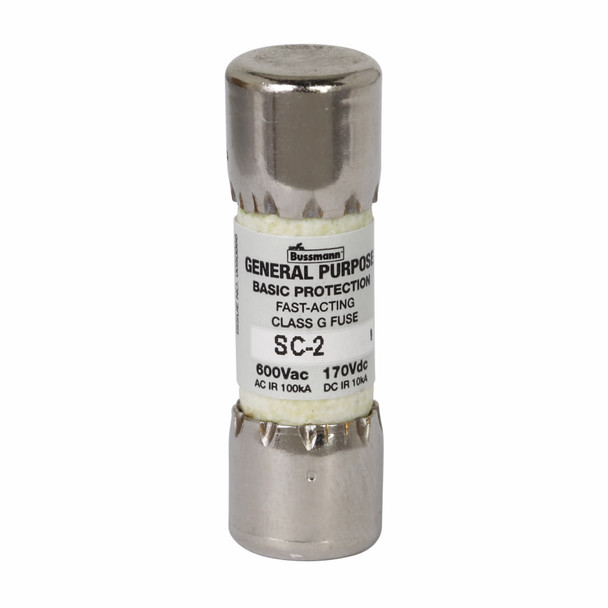

Bussmann SC-2
Bussmann Fuse, Current Limiting Fast Acting Time Delay, Series: SC Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2 A, 600 VAC/170 VDC, 100/10 kAIC Interrupt, Class: G, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Melamine, 0.41 in Dia x 1.31 in L Body Size
Additional Description: BUSS-SC-2 BUSS SC FUSE CLASS G CLASS G
Catalog Description: Eaton Bussmann series SC fuse, Current-limiting fast acting fuse, Rejection style, 2 A, Class G, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 170 Vdc,100 kAIC at 600 Vac, Standard, 600 V, 170 Vdc
Specifications
| UNSPSC | 39121609 |
|---|---|
| Amperage Rating | 2 A |
| Body Type | Cartridge |
| Class | G |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100/10 kAIC |
| Material | Melamine |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Response Time | 12 s at 200% |
| Series | SC Series |
| Terminal Type | Ferrule End |
| Type | Current Limiting Fast Acting Time Delay |
| Voltage Rating | 600 VAC/170 VDC |
