Description

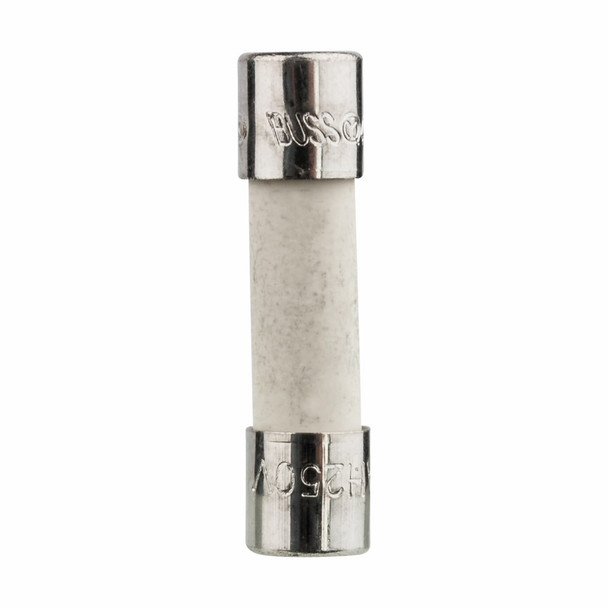

Bussmann S505-500-R Time Delay Fuse
Bussmann Time Delay Fuse, High Breaking, Series: S505, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 500 mA, 250 VAC, 1.5 kA Interrupt, 50 Hz, Ferrule Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 5.2 mm Dia x 20 mm L Body Size
Additional Description: BUSS-S505-500-R (N) S505 500MA BUSS FUSE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 500MA 250V 5mm x 20mm RoHS Compliant Ceramic, Time Delay Fuse
Specifications
| UNSPSC | 39121607 |
|---|---|
| Amperage Rating | 500 |
| Amperage Rating | 500 mA |
| Body Type | Cylindrical |
| Frequency Rating | 50 |
| Frequency Rating | 50 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 1.5 |
| Interrupt Rating | 1.5 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Series | S505 |
| Terminal Type | Ferrule |
| Type | High Breaking |
| Voltage Rating | 250 |
| Voltage Rating | 250 VAC |
