Description

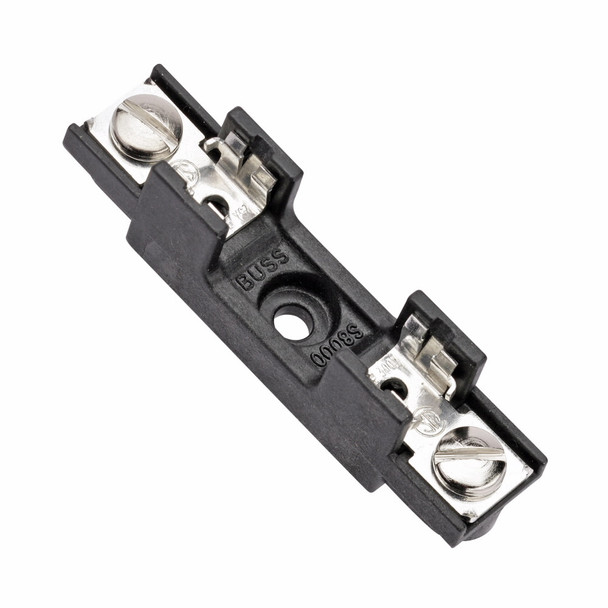

Bussmann S-8301-12-R Fuse Block
Bussmann Fuse Block, Breakaway, Series: 8300, 300 VAC/VDC, 25/30 A, 12 Pole, Screw/Straight Terminal Connection, Bolted-In Mounting, 1-1/4 in Fuse Length, 1/4 in Diameter Fuse, 130 deg C, Thermoplastic, Black, 2.16 in L x 0.5 in W x 0.56 in H Dimensions
Additional Description: BUSS-S-8301-12-R BUSS FUSEBLOCK
Catalog Description: BUSS FUSEBLOCK
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 25/30 A |
| Color | Black |
| Connection type | Screw/Straight Terminal |
| Dimensions | 2.16 in L x 0.5 in W x 0.56 in H |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting type | Bolted-In |
| Number of Poles | 12 |
| Series | 8300 |
| Temperature Rating (Degrees F) | 130 deg C |
| Type | Breakaway |
| Voltage Rating | 300 VAC/VDC |
