Description

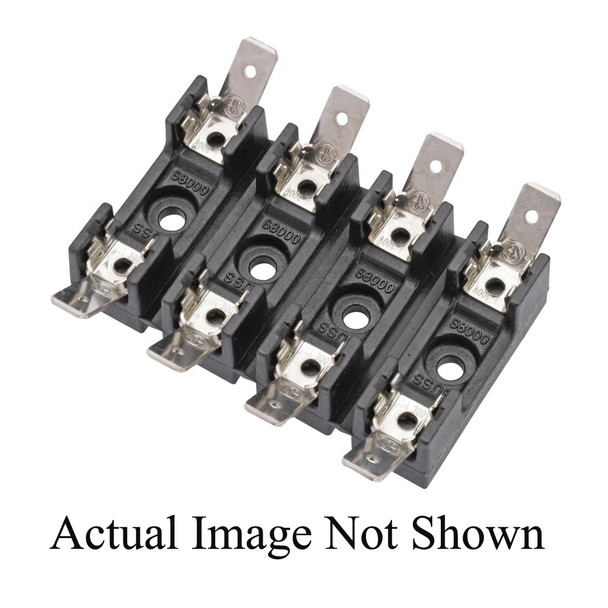

Bussmann S-8202-12 Fuse Block
Bussmann Fuse Block, Breakaway, Series: 8200, 300 VAC/VDC, 16/20 A, 12 Pole, Quick-Connect Connection, Bolted-In Mounting, 1-1/4 in Fuse Length, 1/4 in Diameter Fuse, 130 deg C, Thermoplastic, 2 in L x 0.5 in W x 0.56 in H Dimensions
Additional Description: BUSS-S-8202-12 300 VOLT 20 AMP GLASS FUSE BLOCK-12 POLE
Catalog Description: 20A 300V 1/4" x 1-1/4" 12 Pole Fuseblock, 40 Degree 1/4" Quick Connect
Specifications
| UNSPSC | 39121624 |
|---|---|
| Amperage Rating | 16/20 |
| Amperage Rating | 16/20 A |
| Connection type | Quick-Connect |
| Dimensions | 2 in L x 0.5 in W x 0.56 in H |
| Fuse Diameter | 1/4 |
| Fuse Diameter | 1/4 in |
| Fuse Length | 1-1/4 |
| Fuse Length | 1-1/4 in |
| Material | Thermoplastic |
| Mounting type | Bolted-In |
| Mounting type | Bolt-In |
| Number of Poles | 12 |
| Series | 8200 |
| Temperature Rating (Degrees F) | 130 |
| Temperature Rating (Degrees F) | 130 deg C |
| Type | Breakaway |
| Voltage Rating | 300 |
| Voltage Rating | 300 VAC/VDC |
