Description

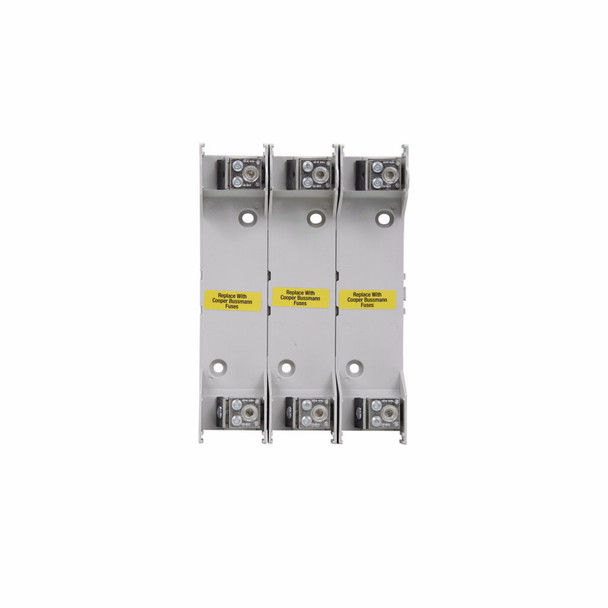

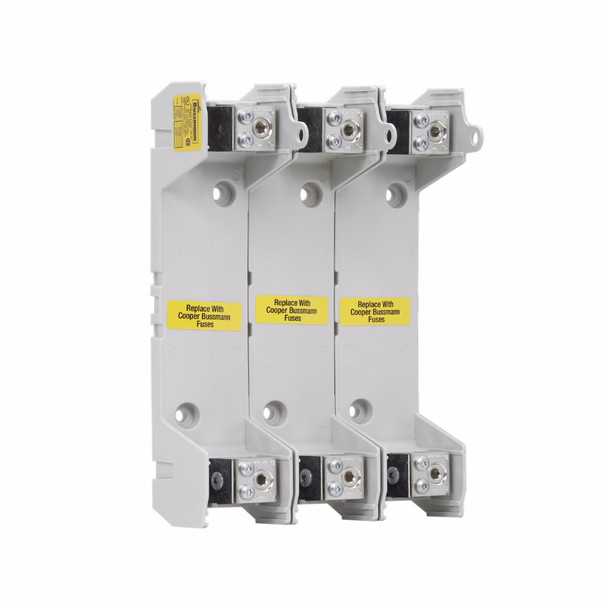

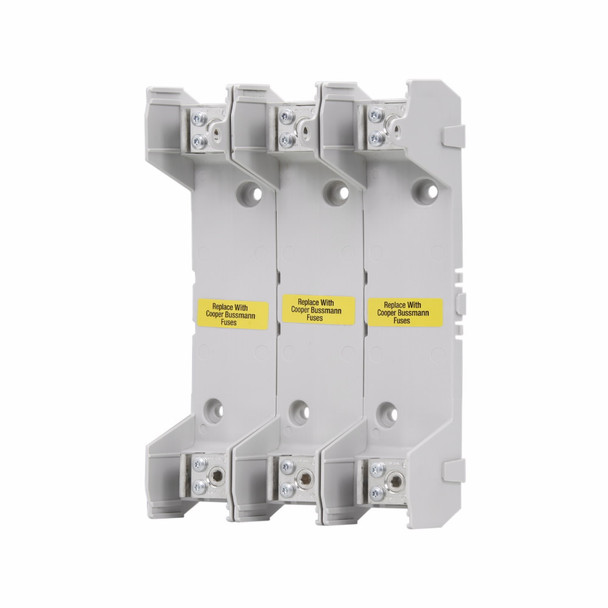

Bussmann RM60030-1CR Fuse Block
Bussmann Fuse Block, Modular, Series: RM Series, 600 V, 0 to 30 A, 1 Pole, Class: R, Fuse Holder Code: P, Box Lug/Slot Screw, 14 to 2 AWG Cu, 8 to 2 AWG Al Wire, DIN Rail/Panel Mount, 5 in Fuse Length, 0.81 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPS Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse, Thermoplastic, 6.25 in L x 1.2 in W x 2.3 in H
Additional Description: BUSS-RM60030-1CR Fuse Block, Class R, 600V 30A, 1 Pole POLE
Catalog Description: Eaton Bussmann Series RM modular fuse block, CR, 0-30 A, Single-pole, Class R, Box lug, 600 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 0 to 30 A |
| Amperage Rating | 30 |
| Class | R |
| Connection type | Box Lug/Slot Screw |
| Dimensions | 6.25 in L x 1.2 in W x 2.3 in H |
| Fuse Diameter | 0.81 |
| Fuse Diameter | 0.81 in |
| Fuse Length | 5 |
| Fuse Length | 5 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 1 |
| Series | RM Series |
| Series | RM600 |
| Suitable For Use With | Low-Peak LPS Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPS Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN Series Time Delay Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPS Time Delay, Limitron™ KTN-R Fast Acting, Fusetron™ FRN Time Delay Ferrule Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Type | Modular Knife Blade |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 14 to 2 AWG Cu, 8 to 2 AWG Al |
| Wire Size | 14 to 2 AWG, 8 to 2 AWG |
