Description

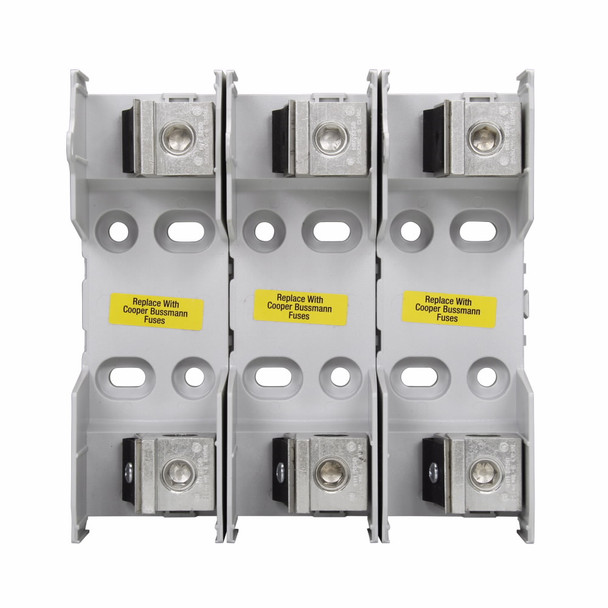

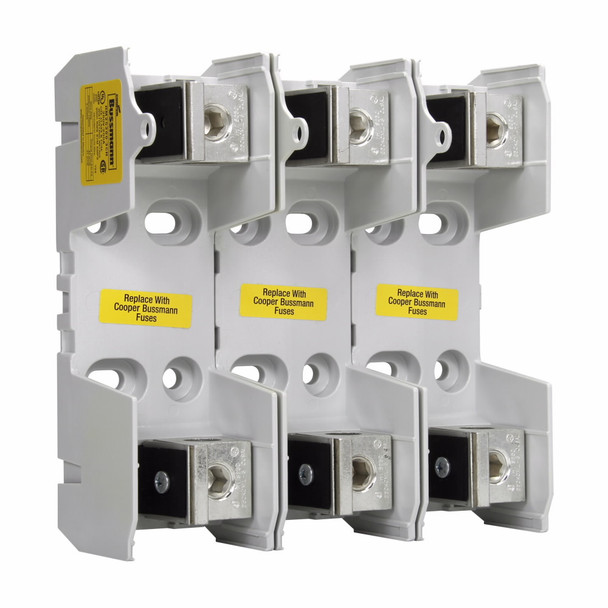

Bussmann RM25200-3CR Fuse Block
Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 110 to 200 A, 3 Pole, Class: R, Knife Blade End, 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded Wire, Hole Mount, -40 to 120 deg C, For Use With: Knife Blade Cartridge Fuse, Thermoplastic, 7.3 in L x 7.9 in W x 3.8 in H
Additional Description: BUSS-RM25200-3CR 200 amp class R fuse holder 250V 3 pole 3 pol
Catalog Description: Eaton Bussmann Series RM modular fuse block, CR, 110-200 A, Three-pole, Class R, Knife blade end x knife blade end, 250 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 110 to 200 |
| Amperage Rating | 110 to 200 A |
| Class | R |
| Connection type | Knife Blade End |
| Dimensions | 7.3 in L x 7.9 in W x 3.8 in H |
| Material | Thermoplastic |
| Mounting type | Hole |
| Number of Poles | 3 |
| Series | RM Series |
| Suitable For Use With | Knife Blade Cartridge Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Modular |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
| Wire Size | 1 AWG to 250 kcmil, 2 to 6 AWG, (2) 2 to 6 AWG Cu Solid/Stranded, 1 to 3/0 AWG, 6 to 2 AWG Cu Fine Stranded |
