Description

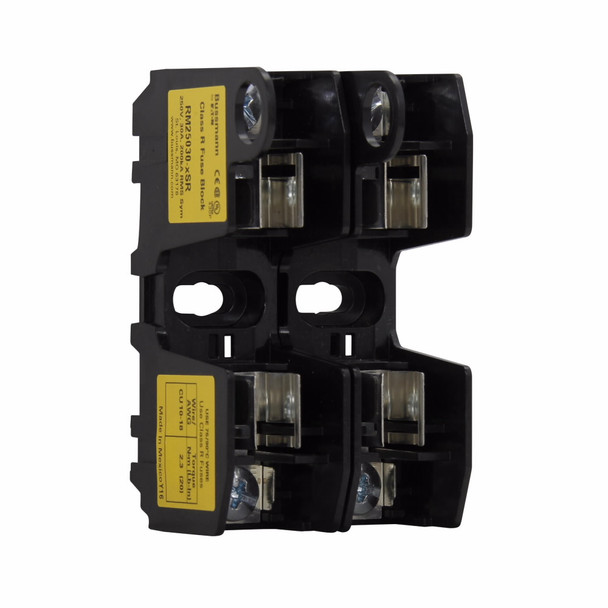

Bussmann RM25030-2SR Fuse Block
Bussmann Fuse Block, Modular, Series: RM Series, 250 V, 0 to 30 A, 2 Pole, Class: R, Screw, 18 to 10 AWG Wire, DIN Rail/Panel Mount, 2 in Fuse Length, 0.56 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPN Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse, Thermoplastic, 3.2 in L x 2 in W x 1.4 in H
Additional Description: BUSS-RM25030-2SR Fuse Block, Class R, 250V 30A, 2 Pole POLE
Catalog Description: Eaton Bussmann Series RM modular fuse block, 0-30 A, Two-pole, Class R, Screw, 250 V
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 0 to 30 A |
| Amperage Rating | 30 |
| Class | R |
| Connection type | 10-32 Philips Slot Screw |
| Connection type | Screw |
| Dimensions | 3.2 in L x 2 in W x 1.4 in H |
| Fuse Diameter | 0.56 |
| Fuse Diameter | 0.56 in |
| Fuse Length | 2 |
| Fuse Length | 2 in |
| Material | Thermoplastic |
| Mounting type | DIN Rail/Panel |
| Number of Poles | 2 |
| Series | RM Series |
| Series | RM250 |
| Suitable For Use With | Low-Peak LPN Series Time Delay, Limitron KTN-R Series Fast Acting, Fusetron FRN Series Time Delay Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPN Series Time Delay, Limitron™ KTN-R Series Fast Acting, Fusetron™ FRN Series Time Delay Ferrule Fuse |
| Suitable For Use With | Low-Peak™ LPN Time Delay, Limitron™ KTN-R Fast Acting, Fusetron™ FRN Time Delay Ferrule Fuse |
| Temperature Rating (Degrees F) | -40 to 120 |
| Temperature Rating (Degrees F) | -40 to 120 deg C |
| Type | Knife Blade |
| Type | Modular |
| Type | Modular Knife Blade |
| Voltage Rating | 250 |
| Voltage Rating | 250 V |
| Wire Size | 18 to 10 |
| Wire Size | 18 to 10 AWG |
