Description

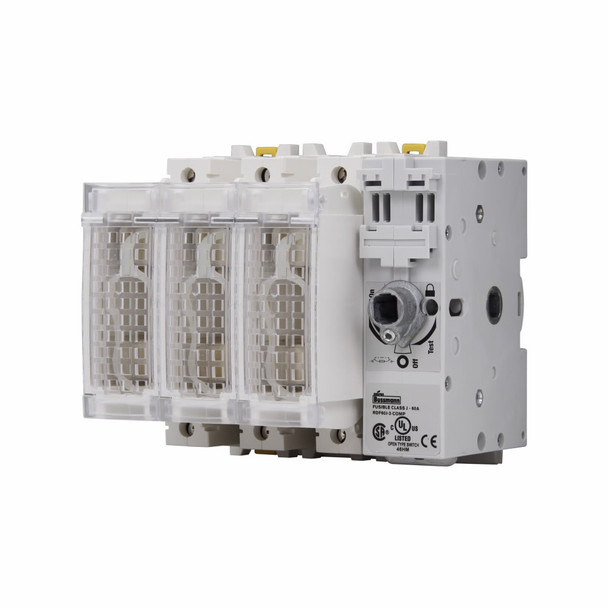

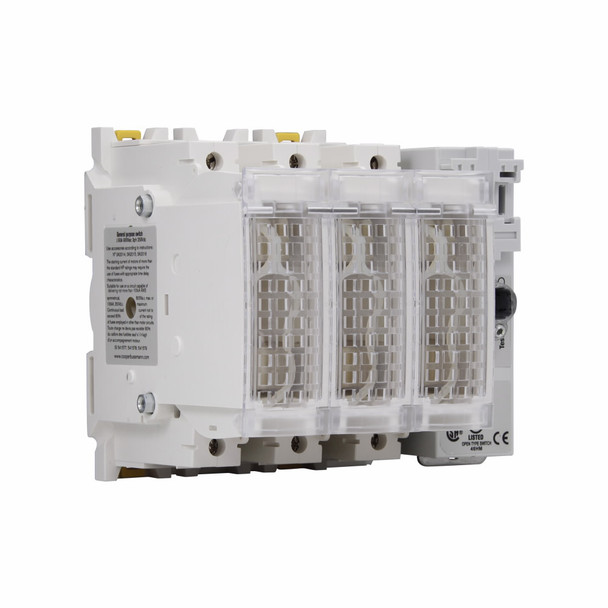

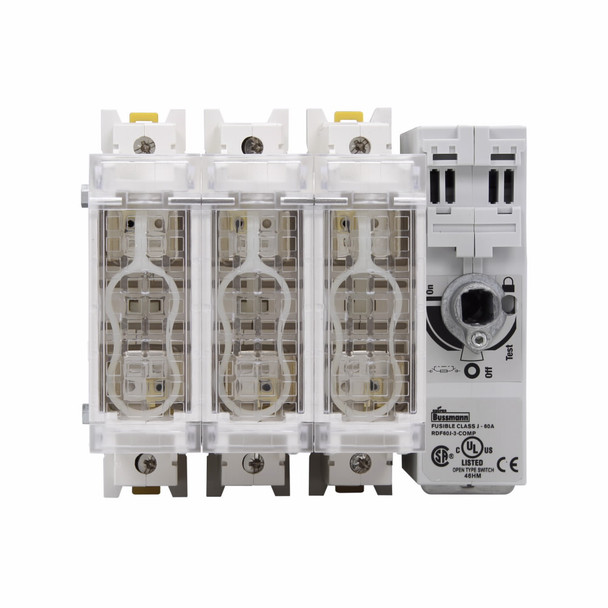

Bussmann RDF60J-3-COMP Open Rotary Disconnect Switch
Bussmann Open Rotary Disconnect Switch, Compact Class J Fused, Series: RDF, 600 VAC, 250 VDC, 60 A, 15 hp at 220/240 VAC, 30 hp at 440/480 VAC, 50 hp at 600 VAC, 5 hp at 125 VDC, 10 hp at 250 VDC, 1/3 ph, 3 Pole, 100 kA Short Circuit, 1NO-1NC Contact Form, Front/Side Handle Actuator, Flange Mounting, -20 to 70 deg C, 5.67 in L x 4.73 in W x 5.35 in H Dimensions
Additional Description: BUSS-RDF60J-3-COMP Switch 60A J 3P UL98 COMP
Catalog Description: Eaton Bussmann series RDF fused rotary disconnect switch, Compact switch, Front/side handle operation, Flange, 600 Vac, 250 Vdc, 60A, Fused disconnect switch - RDF60J-3-COMP
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front/Side Handle |
| Actuator Type | Rotary Handle |
| Amperage Rating | 60 A |
| Contact Form | 1NO/1NC |
| Contact Form | 1NO-1NC |
| Dimensions | 5.67 in L x 4.73 in W x 5.35 in H |
| Horsepower | 15 hp at 220/240 VAC, 30 hp at 440/480 VAC, 50 hp at 600 VAC, 5 hp at 125 VDC, 10 hp at 250 VDC |
| Horsepower | 15 hp at 220/240 VAC/30 hp at 440/480 VAC/50 hp at 600 VAC/5 hp at 125 VDC/10 hp at 250 VDC |
| Horsepower | 50 |
| Mounting type | Flange |
| Number of Poles | 3 |
| Phase | 1/3 ph |
| Series | RDF |
| Short Circuit Current Rating (kA) | 100 |
| Short Circuit Current Rating (kA) | 100 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Type | Class J Compact Fused |
| Type | Class J Compact Fused Open Rotary |
| Type | Compact Class J Fused |
| Voltage Rating | 600 VAC, 250 VDC |
| Voltage Rating | 600 VAC/250 VDC |
