Description

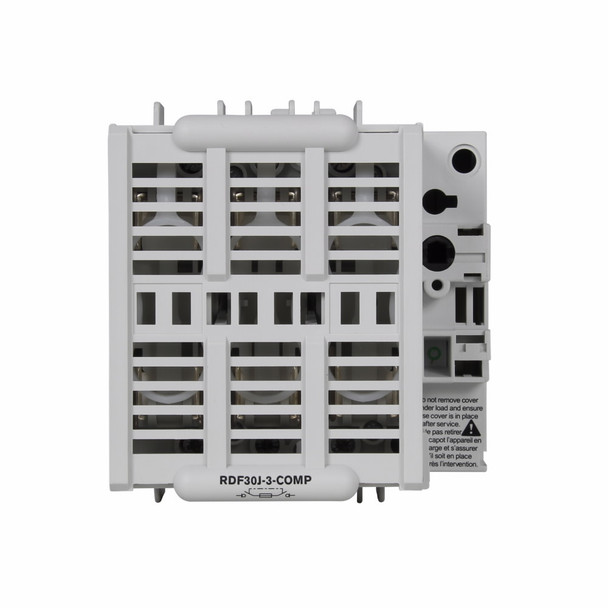

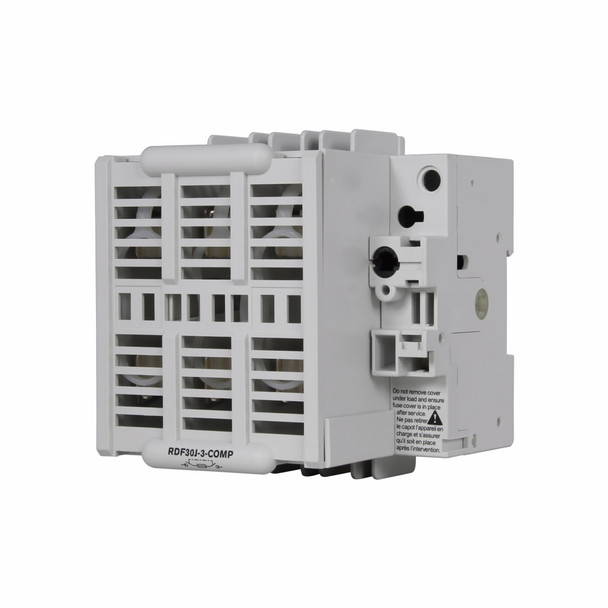

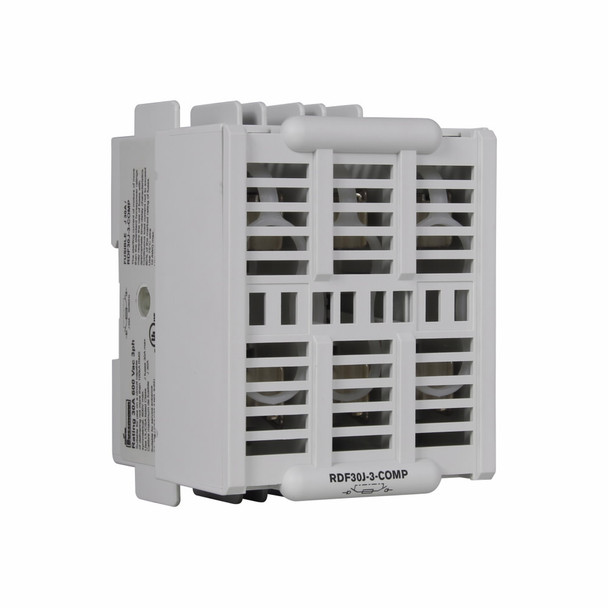

Bussmann RDF30J-3-COMP Disconnect Switch
Bussmann Rotary Disconnect Switch, Compact Class J Fused, Series: RDF, 600 VAC, 30 A, 30 hp, 75 hp, 20 hp, 3 ph, 3 Pole, 100 kA Short Circuit Current, Front Handle Actuator, DIN Rail/Panel Mount, -20 to 70 deg C, 4-1/2 in L x 3 in W x 3 in H
Additional Description: BUSS-RDF30J-3-COMP Switch 30A J 3P UL489
Catalog Description: Eaton Bussmann series RDF fused rotary disconnect switch, Compact switch, Front handle operation, Fuse class J, 600V, 30A, Fused disconnect switch - RDF30J-3-COMP
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front Handle |
| Actuator Type | Rotary |
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Dimensions | 3 in H x 4-1/2 in W x 3 in D |
| Dimensions | 4-1/2 in L x 3 in W x 3 in H |
| Horsepower | 20 |
| Horsepower | 30 hp, 75 hp, 20 hp |
| Horsepower | 75 |
| Mounting type | DIN Rail/Panel |
| Mounting type | Panel |
| Number of Poles | 3 |
| Phase | 3 |
| Phase | 3 ph |
| Series | RDF |
| Short Circuit Current Rating (kA) | 100 |
| Short Circuit Current Rating (kA) | 100 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Terminal Type | Lug |
| Type | Class J Fusible Compact |
| Type | Compact Class J Fused |
| Type | Fused |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
