Description

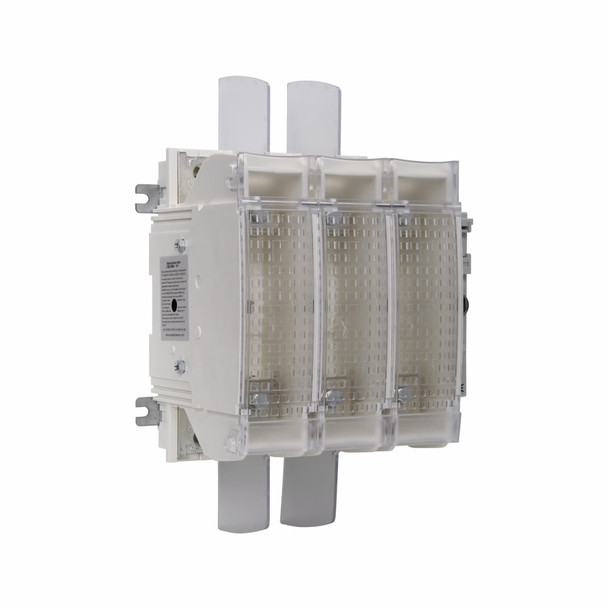

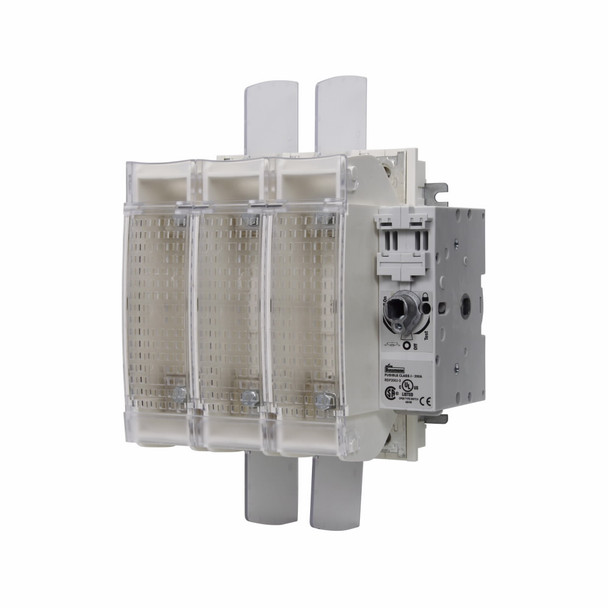

Bussmann RDF200J-4 Rotary Disconnect Switch
Bussmann Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 VAC, 200 A, 60 hp, 150 hp, 3 ph, 4 Pole, 200 kA Short Circuit, Front/Side Handle Actuator, Flange Mounting, -20 to 70 deg C, 7-1/2 in L x 5 in W x 11-1/2 in H Dimensions
Additional Description: BUSS-RDF200J-4 Switch 200A J 4P UL98
Catalog Description: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front/side handle operation, Flange, 600V, 200A, Fused disconnect switch - RDF200J-4
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front/Side Flange Handle |
| Actuator Type | Front/Side Handle |
| Actuator Type | Rotary |
| Amperage Rating | 200 |
| Amperage Rating | 200 A |
| Contact Form | 1NO-1NC |
| Dimensions | 7-1/2 in L x 5 in W x 11-1/2 in H |
| Horsepower | 150 |
| Horsepower | 60 hp at 220/240 VAC, 125 hp at 440/480 VAC, 150 hp at 600 VAC |
| Horsepower | 60 hp, 150 hp |
| Mounting type | Flange |
| Mounting type | Panel |
| Number of Poles | 4 |
| Phase | 3 ph |
| Series | RDF |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Terminal Type | Lug |
| Type | Class J Fused Standard |
| Type | Class J Fusible Standard |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
| Voltage Rating | 600 VAC, 250 VDC |
