Description

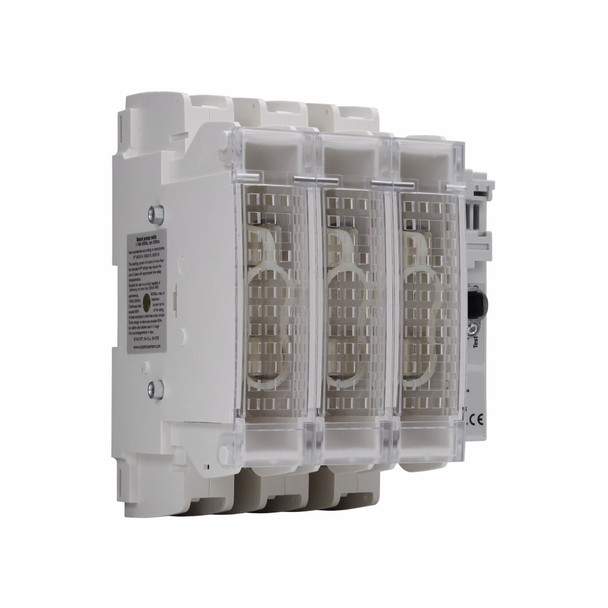

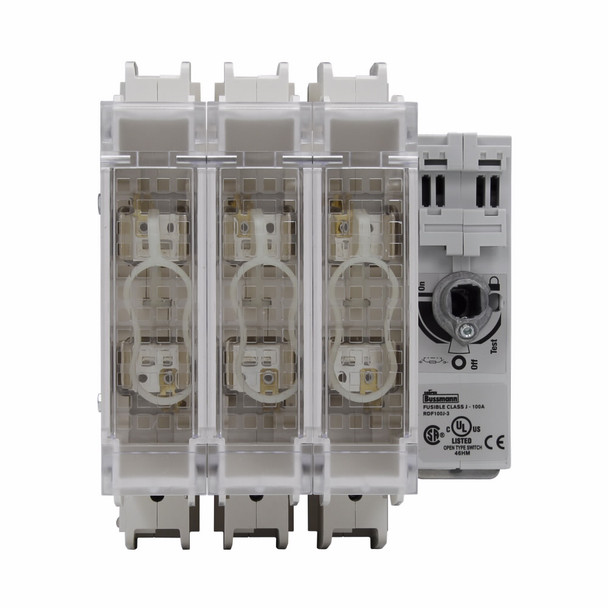

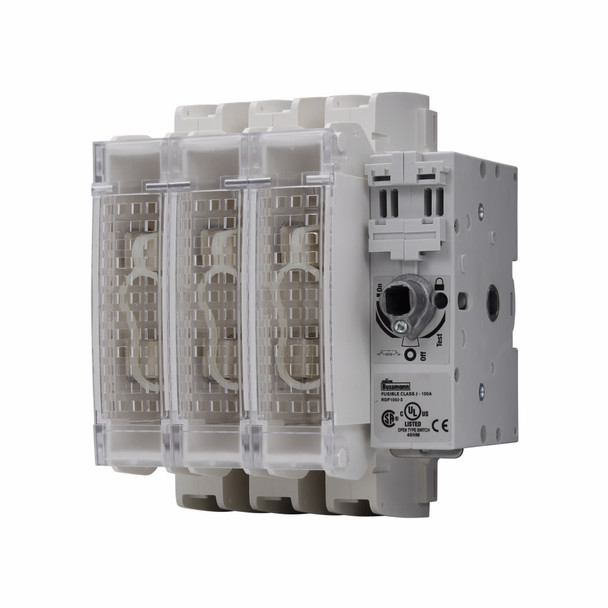

Bussmann RDF100J-4 Open Rotary Disconnect Switch
Bussmann Open Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 VAC, 250 VDC, 100 A, 30 hp at 220/240 VAC, 60 hp at 440/480 VAC, 75 hp at 600 VAC, 7-1/2 hp at 125 VDC, 20 hp at 250 VDC, 3 ph, 4 Pole, 200 kA Short Circuit, 1NO-1NC Contact Form, Front/Side Handle Actuator, Flange Mounting, -20 to 70 deg C, 5.8 in L x 4.75 in W x 7.5 in H Dimensions
Additional Description: BUSS-RDF100J-4 Switch 100A J 4P UL98
Catalog Description: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front/side handle operation, Flange, 600 Vac, 250 Vdc, 100A, Fused disconnect switch - RDF100J-4
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front/Side Handle |
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Contact Form | 1NO/1NC |
| Contact Form | 1NO-1NC |
| Dimensions | 5.8 in L x 4.75 in W x 7.5 in H |
| Horsepower | 30 hp at 220/240 VAC, 60 hp at 440/480 VAC, 75 hp at 600 VAC, 7-1/2 hp at 125 VDC, 20 hp at 250 VDC |
| Horsepower | 30 hp at 220/240 VAC/60 hp at 440/480 VAC/75 hp at 600 VAC/7.5 hp at 125 VDC/20 hp at 250 VDC |
| Mounting type | Flange |
| Number of Poles | 4 |
| Phase | 3 |
| Phase | 3 ph |
| Series | RDF |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Type | Class J Fused Standard |
| Voltage Rating | 600 VAC, 250 VDC |
