Description

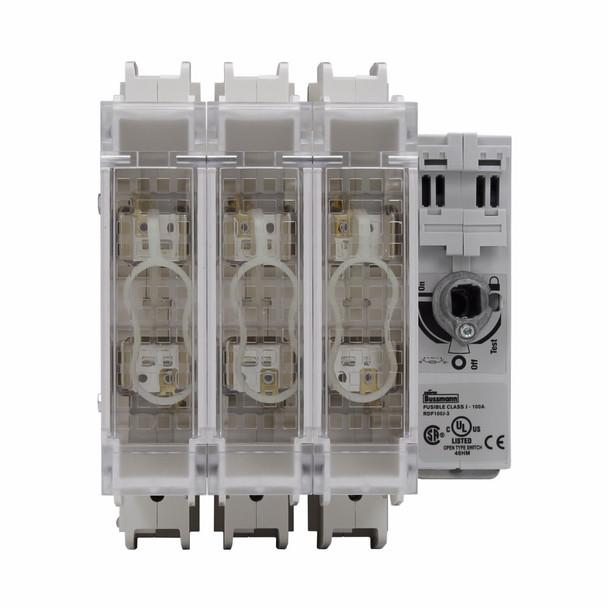

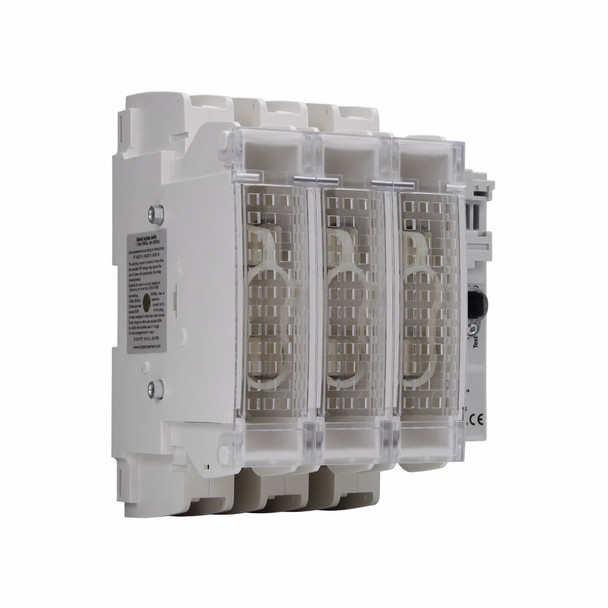

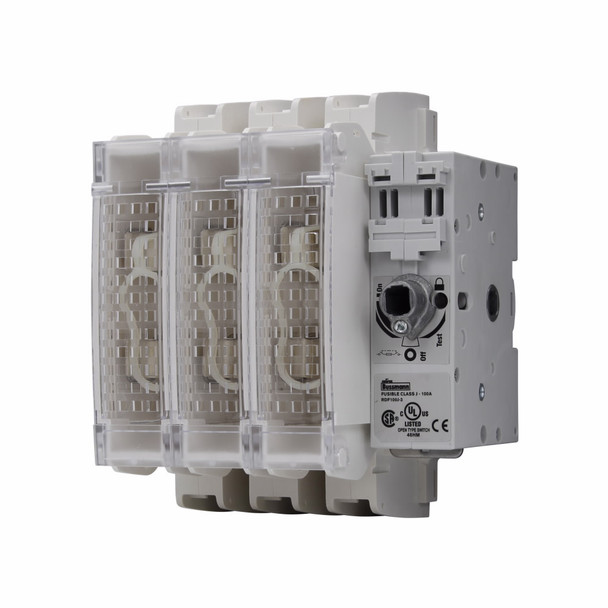

Bussmann RDF100J-3 Rotary Disconnect Switch
Bussmann Rotary Disconnect Switch, Class J Fused Standard, Series: RDF, 600 VAC, 250 VDC, 100 A, 30 hp, 75 hp at 600 VAC, 20 hp at 250 VDC, 3 ph, 3 Pole, 200 kA Short Circuit, Front/Side Handle Actuator, DIN Rail/Panel/Flange Mounting, -20 to 70 deg C, 5.8 in L x 4.75 in W x 7.5 in H Dimensions
Additional Description: BUSS-RDF100J-3 Switch 100A J 3P UL98
Catalog Description: Eaton Bussmann series RDF fused rotary disconnect switch, Standard switch, Front/side handle operation, Flange, 600 Vac, 250 Vdc, 100A, Fused disconnect switch - RDF100J-3
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front/Side Handle |
| Actuator Type | Rotary |
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Dimensions | 5.8 in L x 4.75 in W x 7.5 in H |
| Dimensions | 7-1/2 in H x 5.8 in W x 4-3/4 in D |
| Horsepower | 30 hp, 75 hp at 600 VAC, 20 hp at 250 VDC |
| Horsepower | 75 |
| Horsepower | 75 hp, 20 hp |
| Mounting type | DIN Rail/Panel |
| Mounting type | DIN Rail/Panel/Flange |
| Mounting type | Panel |
| Number of Poles | 3 |
| Phase | 3 |
| Phase | 3 ph |
| Series | RDF |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Terminal Type | Lug |
| Type | Class J Fused Standard |
| Type | Class J Fusible Standard |
| Type | Fused |
| Voltage Rating | 600 VAC, 250 VDC |
