Description

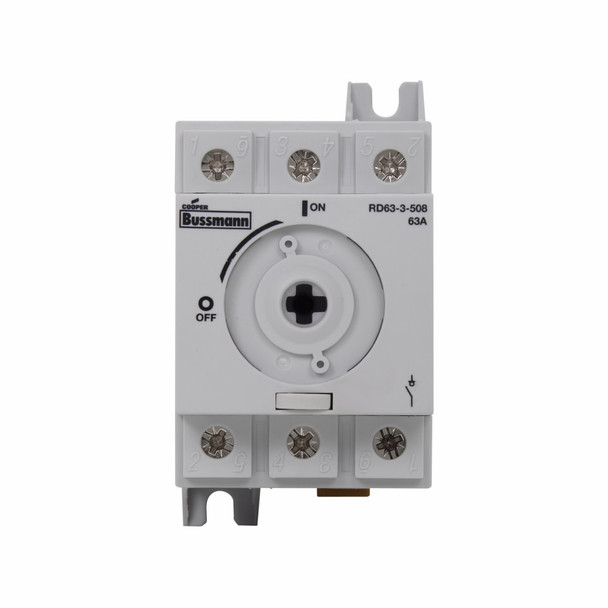

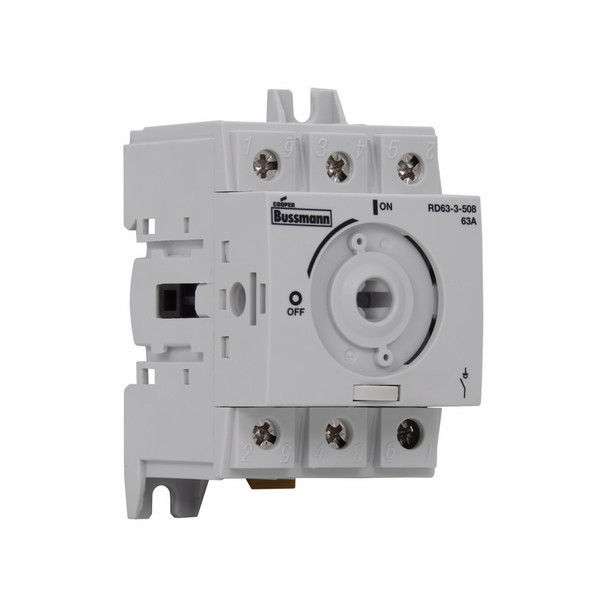

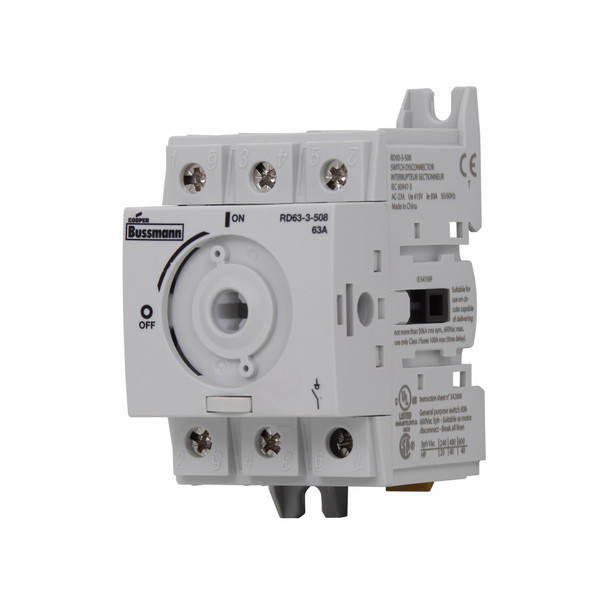

Bussmann RD63-3-508 Disconnect Switch
Bussmann Rotary Disconnect Switch, Non-Fused, Series: RD Series, 600 VAC, 63 A, 15 hp, 20 hp, 40 hp, 3 ph, 3 Pole, 50/65 kA Short Circuit Current, Front/Side Handle Actuator, -20 to 70 deg C, 2.7 in L x 2.55 in W x 2.97 in H
Additional Description: BUSS-RD63-3-508 Switch 63A Non-F 3P UL508
Catalog Description: Eaton Bussmann series RD non-fused rotary disconnect switch, Front/side handle operation, 600V, 63A, Non-fused disconnect switch
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front/Side Handle |
| Actuator Type | Rotary |
| Amperage Rating | 63 |
| Amperage Rating | 63 A |
| Dimensions | 2.7 in L x 2.55 in W x 2.97 in H |
| Dimensions | 4.33 in H x 2.06 in W x 3.35 in D |
| Horsepower | 15 hp, 20 hp, 40 hp |
| Horsepower | 40 |
| Mounting type | Panel |
| Number of Poles | 3 |
| Phase | 3 |
| Phase | 3 ph |
| Series | RD Series |
| Short Circuit Current Rating (kA) | 50/65 |
| Short Circuit Current Rating (kA) | 50/65 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Terminal Type | Lug |
| Type | Non-Fused |
| Type | Non-Fusible |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
