Description

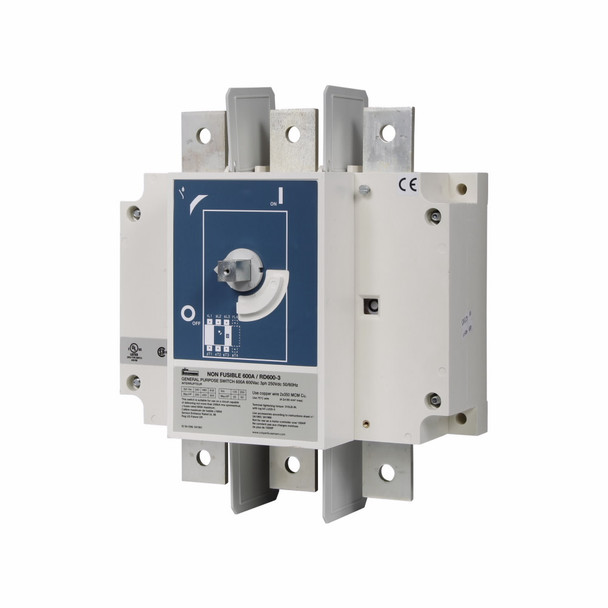

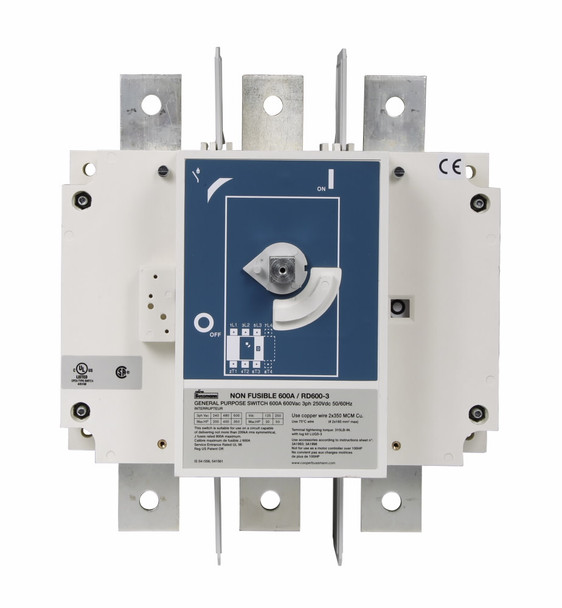

Bussmann RD600-3 Open Rotary Disconnect Switch
Bussmann Open Rotary Disconnect Switch, Non-Fused Standard, Series: RD, 600 VAC, 250 VDC, 600 A, 240 hp at 220/240/400 to 440/480 VAC, 350 hp at 600 VAC, 3 ph, 3 Pole, 200 kA Short Circuit, 1NO-1NC Contact Form, Front Handle Actuator, -20 to 70 deg C, 5-1/2 in L x 11 in W x 12 in H Dimensions
Additional Description: BUSS-RD600-3 Switch 600A Non-F 3P UL98
Catalog Description: Eaton Bussmann series RD non-fused rotary disconnect switch, Standard switch, Front handle operation, 600 Vac, 250 Vdc, 600A, Non-fused disconnect switch - RD600-3
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front Handle |
| Amperage Rating | 600 |
| Amperage Rating | 600 A |
| Contact Form | 1NO-1NC |
| Dimensions | 5-1/2 in L x 11 in W x 12 in H |
| Horsepower | 240 hp at 220/240/400 to 440/480 VAC, 350 hp at 600 VAC |
| Number of Poles | 3 |
| Phase | 3 ph |
| Series | RD Series |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Type | Non-Fused Standard |
| Voltage Rating | 600 VAC, 250 VDC |
