Description

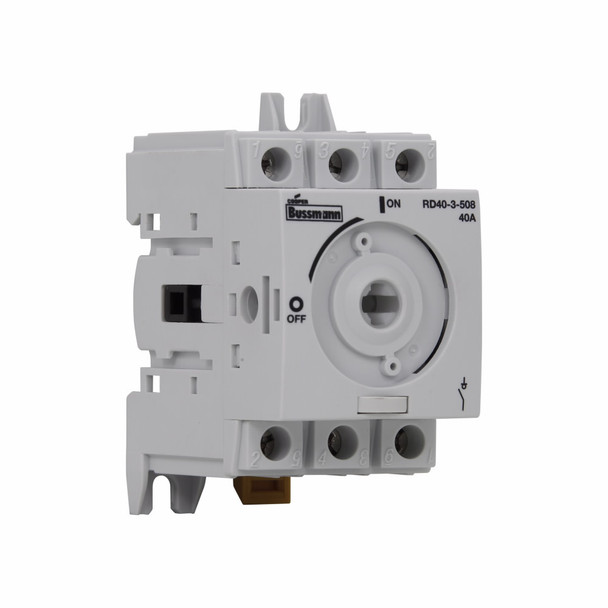

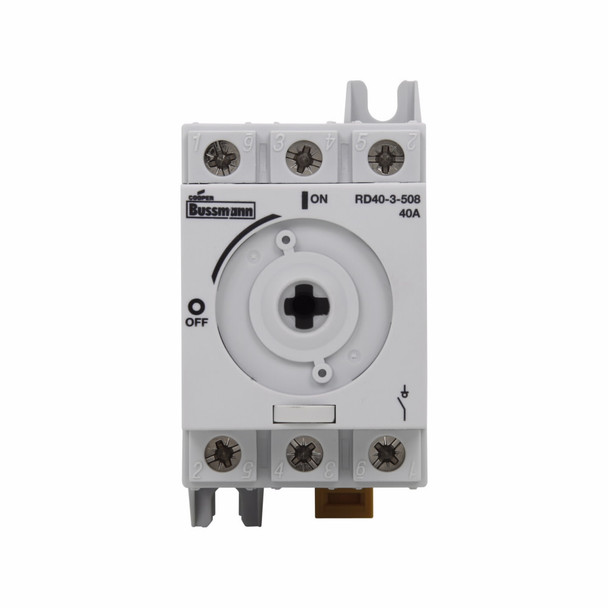

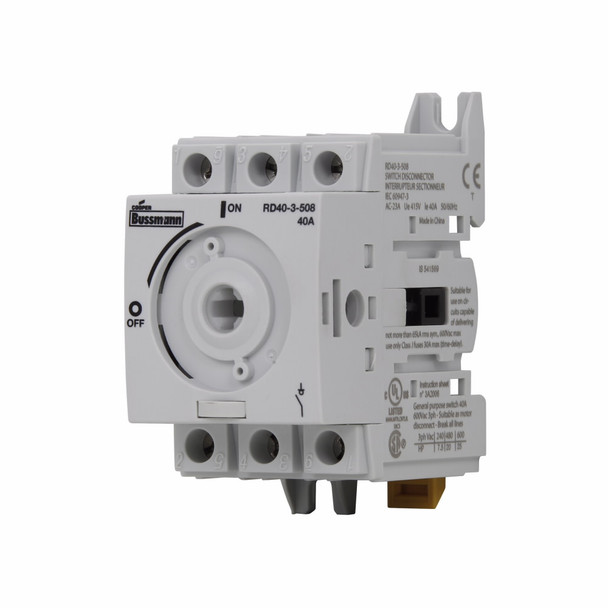

Bussmann RD40-3-508 Disconnect Switch
Bussmann Rotary Disconnect Switch, Non-Fused, Series: RD Series, 600 VAC, 40 A, 25 hp, 3 ph, 3 Pole, 10/65 kA Short Circuit Current, Front/Side Handle Actuator, DIN Rail/Panel Mount, -20 to 70 deg C, 1.78 in L x 2.49 in W x 2.73 in H
Additional Description: BUSS-RD40-3-508 Switch 40A Non-F 3P UL508
Catalog Description: Eaton Bussmann series RD non-fused rotary disconnect switch, Front/side handle operation, 600V, 40A, Non-fused disconnect switch
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front/Side Handle |
| Actuator Type | Rotary |
| Amperage Rating | 40 |
| Amperage Rating | 40 A |
| Dimensions | 1.78 in L x 2.49 in W x 2.73 in H |
| Dimensions | 4.33 in H x 1.77 in W x 2.95 in D |
| Horsepower | 25 |
| Horsepower | 25 hp |
| Mounting type | DIN Rail/Panel |
| Mounting type | Panel |
| Number of Poles | 3 |
| Phase | 3 |
| Phase | 3 ph |
| Series | RD Series |
| Short Circuit Current Rating (kA) | 10/65 |
| Short Circuit Current Rating (kA) | 10/65 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Terminal Type | Lug |
| Type | Non-Fused |
| Type | Non-Fusible |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
