Description

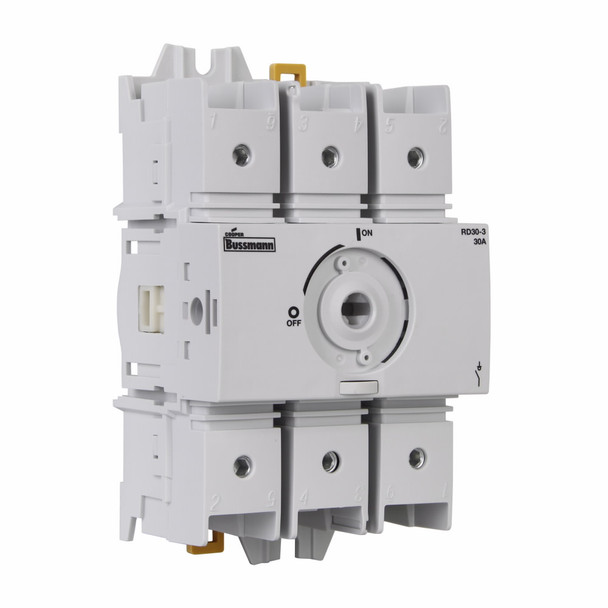

Bussmann RD30-3 Disconnect Switch
Bussmann Rotary Disconnect Switch, Compact Non-Fused, Series: RD, 600 VAC, 30 A, 25 hp, 3 ph, 3 Pole, 100 kA Short Circuit, Front/Side Handle Actuator, DIN Rail/Panel Mounting, -20 to 70 deg C, 5 in L x 3 in W x 2 in H Dimensions
Additional Description: BUSS-RD30-3 Switch 30A Non-F 3P UL98
Catalog Description: Eaton Bussmann series RD non-fused rotary disconnect switch, Compact switch, Front/side handle operation, 600V, 30A, Non-fused disconnect switch
Specifications
| UNSPSC | 39122205 |
|---|---|
| Actuator Type | Front/Side Handle |
| Actuator Type | Rotary |
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Dimensions | 5 in L x 3 in W x 2 in H |
| Dimensions | 7.44 in H x 3.07 in W x 2.95 in D |
| Horsepower | 25 |
| Horsepower | 25 hp |
| Mounting type | DIN Rail/Panel |
| Mounting type | Panel |
| Number of Poles | 3 |
| Phase | 3 |
| Phase | 3 ph |
| Series | RD Series |
| Short Circuit Current Rating (kA) | 100 |
| Short Circuit Current Rating (kA) | 100 kA |
| Temperature Rating (Degrees F) | -20 to 70 |
| Temperature Rating (Degrees F) | -20 to 70 deg C |
| Terminal Type | Lug |
| Type | Compact Non-Fused |
| Type | Compact Non-Fusible |
| Type | Non-Fused |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC |
