Description

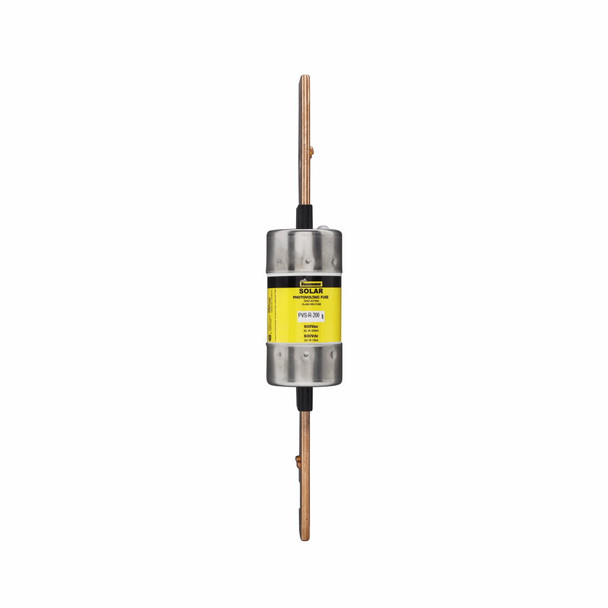

Bussmann PVS-R-200 Fast Acting Fuse
Bussmann Limitron Fast Acting Fuse, Branch Circuit Rated Current Limiting Low Voltage, Series: PVS-R, Non-Indicating, Rejection, 200 A, 600 VAC/VDC, 10/200 kA Interrupt, Class: RK5, Blade Terminal, Holder Mount, Cylindrical Body, Single Element, Fiberglass, 1.84 in Dia x 9.63 in L Body Size
Additional Description: BUSS-PVS-R-200 FA, RK-5 200 A 600 AC/DC
Catalog Description: Eaton Bussmann series PVS-R photovoltaic fuse, Fast-Acting Fuse, Current limiting, 200A, 600 Vac, 600 Vdc, 200 kAIC (RMS Symmetrical UL), 10 kAIC (DC) interrupt rating, RK5 class, Blade end X blade end connection, 1.84 in diameter
Specifications
| UNSPSC | 39121627 |
|---|---|
| Amperage Rating | 200 |
| Amperage Rating | 200 A |
| Body Type | Cartridge |
| Body Type | Cylindrical |
| Class | RK5 |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 10/200 |
| Interrupt Rating | 10/200 kA |
| Interrupt Rating | 200/10 |
| Material | Fiberglass |
| Mounting type | Holder |
| Rejection/Non-Rejection | Rejection |
| Series | PVS-R |
| Terminal Type | Blade |
| Terminal Type | Knife Blade |
| Type | Branch Circuit Rated Current Limiting Low Voltage |
| Type | Current Limiting |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
