Description

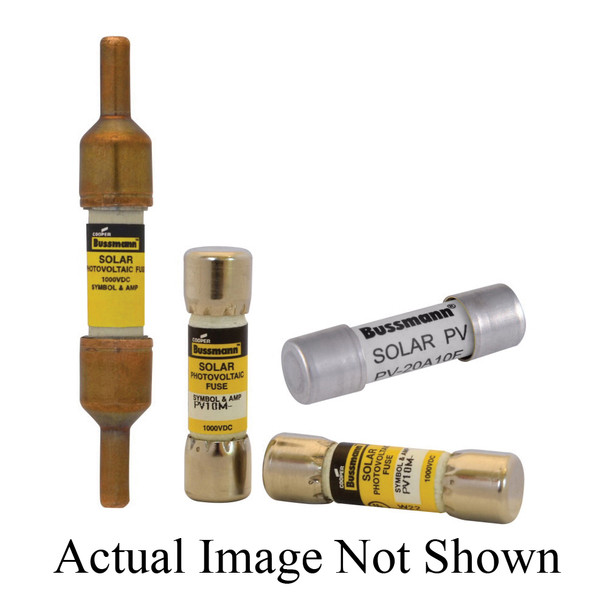

Bussmann PV-5A10F-CT Photovoltaic Fuse
Bussmann Photovoltaic Fuse, Series: PV Series, 5 A, 1000 VDC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Crimp Terminal, In-Line Mount, Cylindrical Body Type, 10 mm Dia x 38 mm L Body Size
Additional Description: BUSS-PV-5A10F-CT 5AMP 1000V DC INLINE FUSE/HOLDER ASM
Catalog Description: Eaton Bussmann series PV photovoltaic fuse, Time constant: 1-3 ms, 1000 Vdc, gPV and UL PV class, Operating temp: -40 to 90degC, in-line with crimp terminals mount, 50 kAIC interrupt rating, 5A current rating, 1W at .81I2, 1.6W watt losses
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 5 |
| Amperage Rating | 5 A |
| Body Type | Cylindrical |
| Class | gPV |
| Interrupt Rating | 50 |
| Interrupt Rating | 50 kA |
| Mounting type | In-Line |
| Response Time | 1 to 3 |
| Response Time | 1 to 3 ms |
| Series | PV Series |
| Terminal Type | Crimp |
| Voltage Rating | 1000 |
| Voltage Rating | 1000 VDC |
