Description

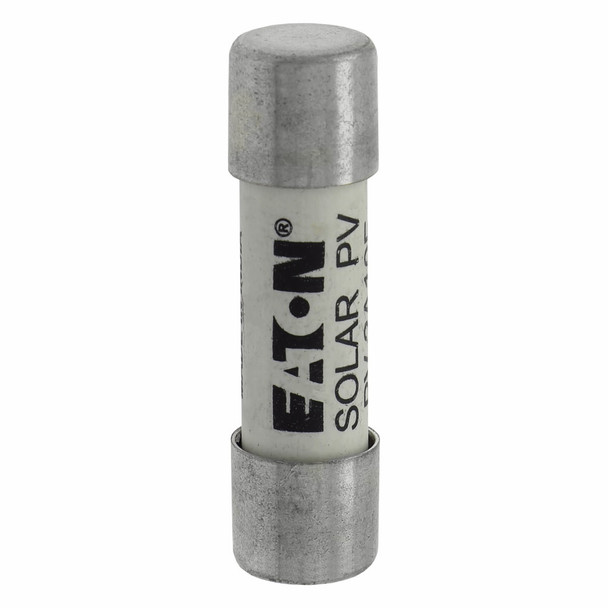

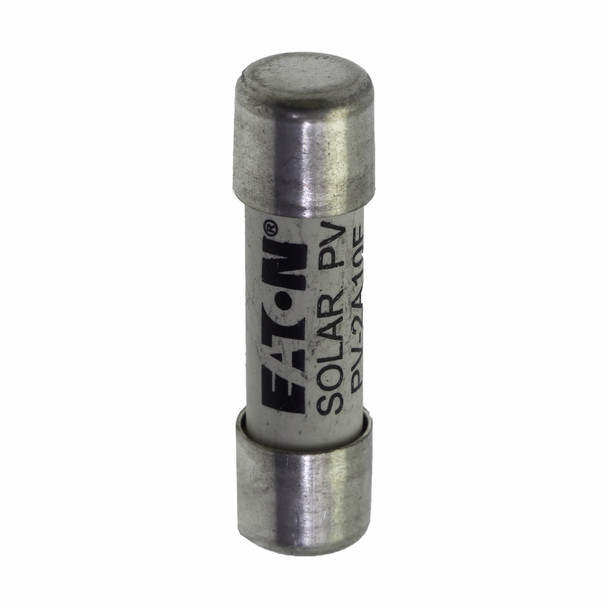

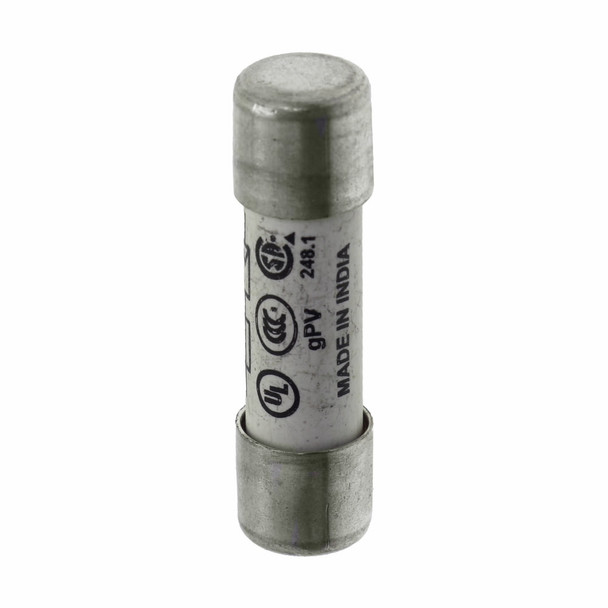

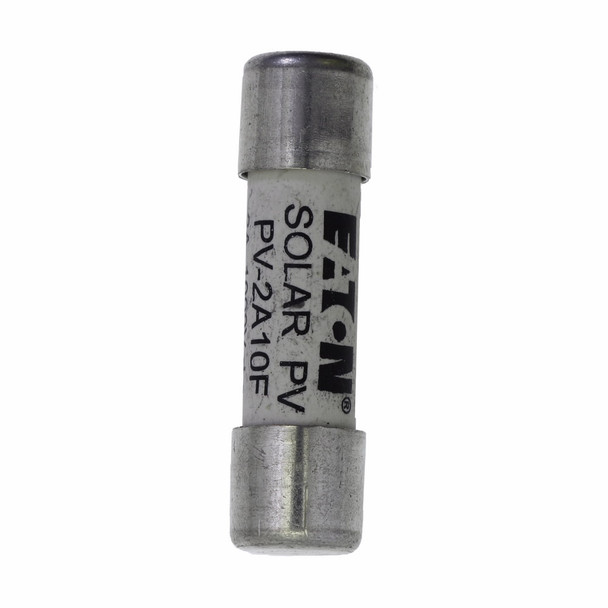

Bussmann PV-2A10F
Bussmann High Speed Photovoltaic Fuse, Series: PV Series, Non-Indicating, 2 A, 1000 VDC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Ferrule End Terminal, Ceramic, 10.3 mm Dia x 38 mm L Body

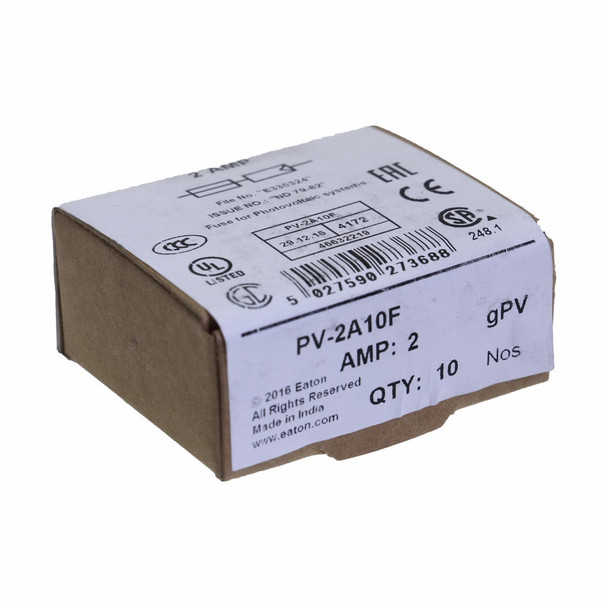

Additional Description: BUSS-PV-2A10F 2AMP 1000V DC SOLAR FERRULE 10 X 38MM
Catalog Description: Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 2A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 2 A |
| Class | gPV |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 kA |
| Material | Ceramic |
| Response Time | 1 to 3 ms |
| Series | PV Series |
| Terminal Type | Ferrule End |
| Voltage Rating | 1000 VDC |
