Description

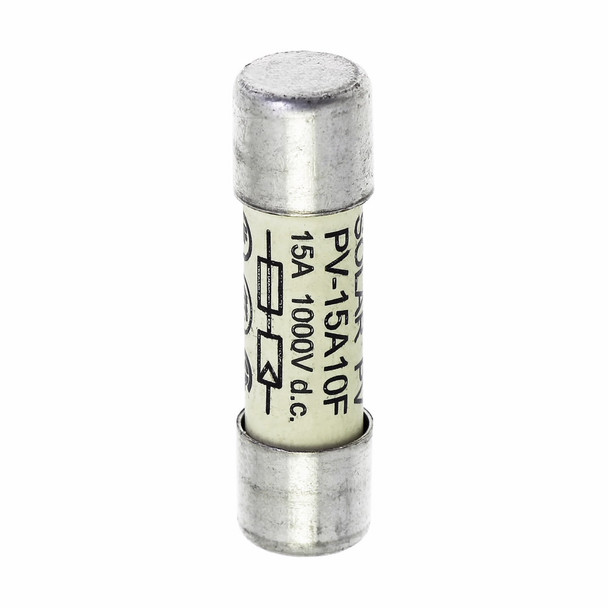

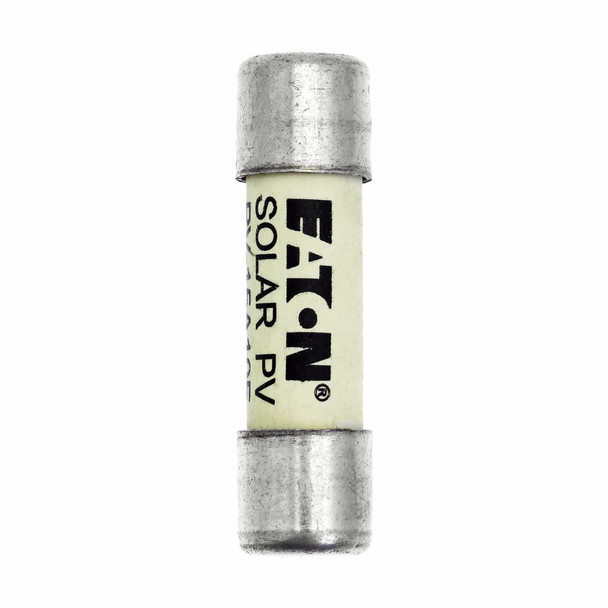

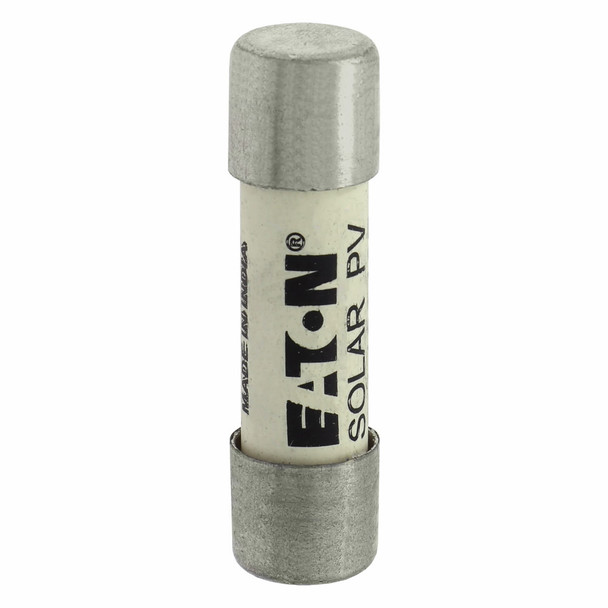

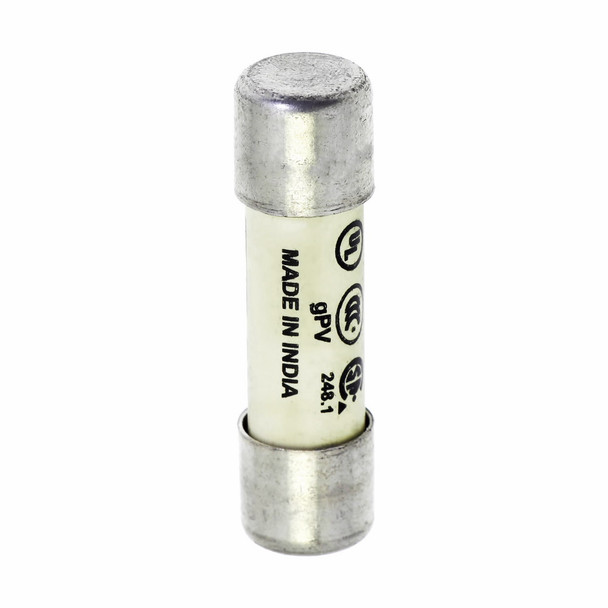

Bussmann PV-15A10F Photovoltaic Fuse Link
Bussmann High Speed Photovoltaic Fuse, Series: PV Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 15 A, 1000 VDC, 50 kA Interrupt, Class: gPV, 1 to 3 ms Response, Ferrule End Terminal, Holder Mount, Cylindrical Body, Single Element, Ceramic, 10 mm Dia x 38 mm L Body Size
Additional Description: BUSS-PV-15A10F 15AMP 1000V DC SOLAR FERRULE 10 X 38MM
Catalog Description: Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 15A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 15 |
| Amperage Rating | 15 A |
| Body Type | Cylindrical |
| Class | gPV |
| Class | gPV/UL PV |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 50 |
| Interrupt Rating | 50 kA |
| Material | Ceramic |
| Mounting type | Holder |
| Rejection/Non-Rejection | Non-Rejection |
| Response Time | 1 to 3 |
| Response Time | 1 to 3 ms |
| Series | PV Series |
| Series | PV-A10 |
| Terminal Type | Clip |
| Terminal Type | Ferrule End |
| Terminal Type | Ferrule End x Ferrule End |
| Voltage Rating | 1000 |
| Voltage Rating | 1000 VDC |
