Description

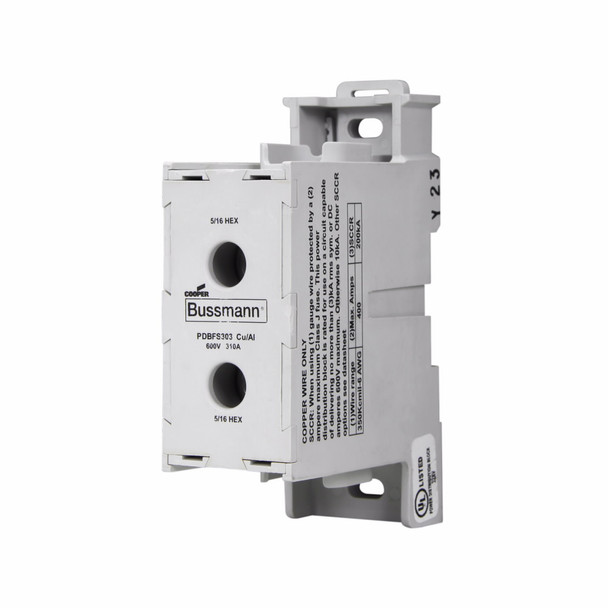

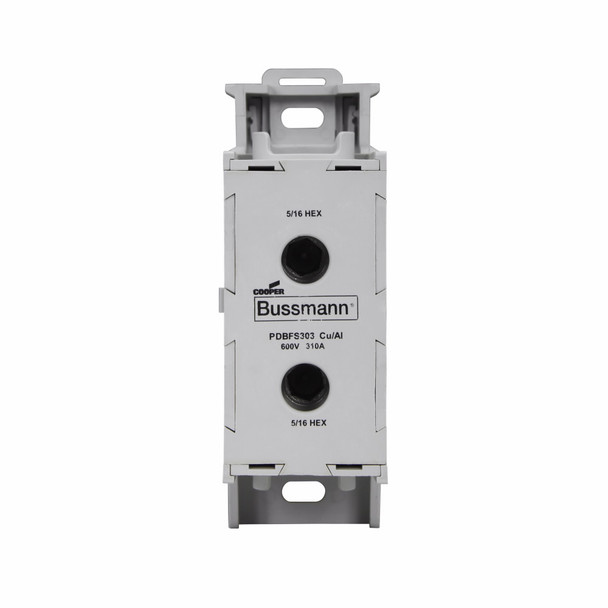

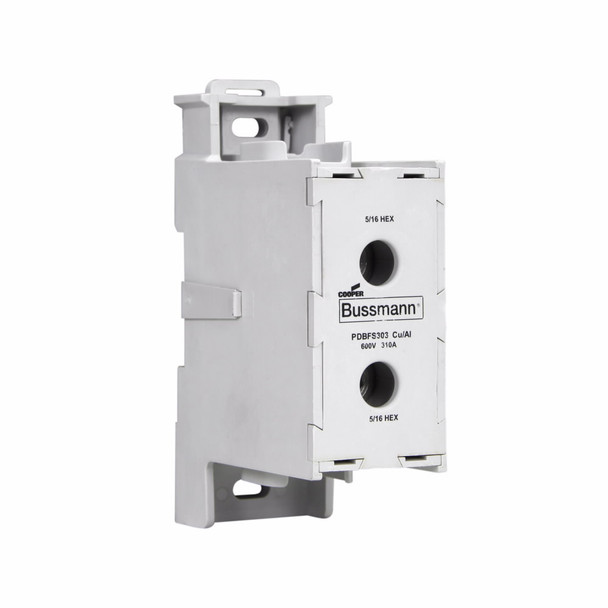

Bussmann PDBFS303 Power Distribution Block
Bussmann Power Distribution Block, Series: PDBFS, 600 VAC/VDC, 310 A, 1 Pole, 6 AWG to 350 kcmil Wire, 200 kA Short Circuit Current Rating, Aluminum, Tin Plated, 4.66 in L x 1.54 in W x 2.87 in H
Additional Description: BUSS-PDBFS303 PDB FINGER SAFE ASSEMBLY
Catalog Description: Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 310A, SCCR: 200 kA, DIN rail, panel, Tin-plated aluminum connectors
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 A |
| Dimensions | 4.66 in L x 1.54 in W x 2.87 in H |
| Finish | Tin Plated |
| Material | Aluminum |
| Number of Poles | 1 |
| Series | PDBFS |
| Short Circuit Current Rating (kA) | 200 kA |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 350 kcmil |
