Description

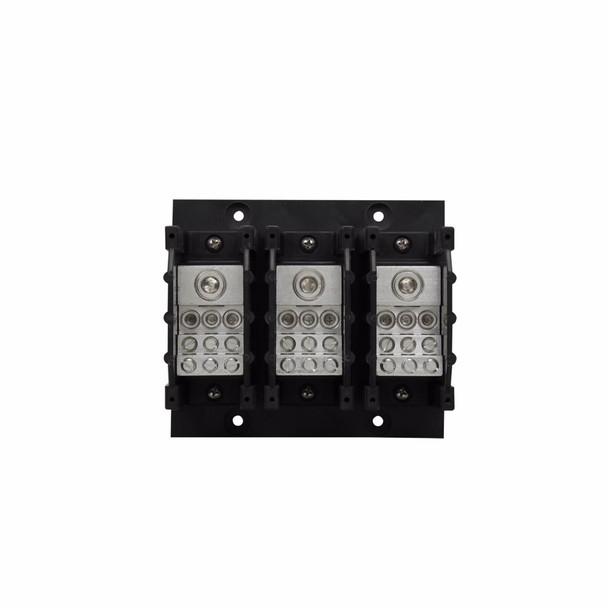

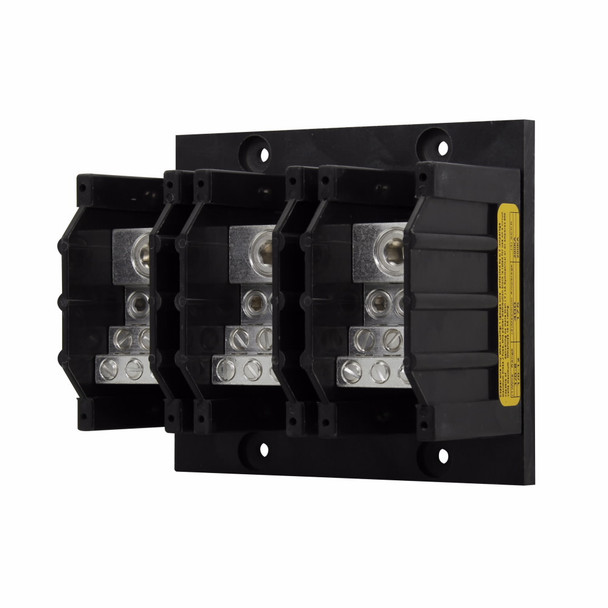

Bussmann PDB371-3 Power Terminal Block
Bussmann Power Distribution Block, Barrier, Series: PDB, 600 VAC/VDC, 310 A, 3 Pole, (1) Box Lug Primary Connections/Pole, (6) Box Lug Secondary Connection/Pole, 4 AWG to 350 kcmil Cu Line, (6) 12 to 2 AWG, (3) 12 to 1/0 AWG Cu Load Wire, Class CC Fuse, 100/200 kA Short Circuit Current, Aluminum, Tin Plated, Black, 5.5 in L x 6 in W x 3.7 in H
Additional Description: BUSS-PDB371-3 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 310 A, Three-pole, SCCR: 200 kA (6 To 1/0 AWG), 100 kA (12 To 1/0 AWG), Panel, Tin-plated aluminum connectors
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 |
| Amperage Rating | 310 A |
| Color | Black |
| Dimensions | 5.5 in L x 6 in W x 3.7 in H |
| Finish | Tin Plated |
| Fuse Type | Class CC |
| Material | Aluminum |
| Number of Poles | 3 |
| Series | PDB |
| Short Circuit Current Rating (kA) | 100/200 |
| Short Circuit Current Rating (kA) | 100/200 kA |
| Type | Barrier |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 4 AWG to 350 kcmil |
| Wire Size | 4 AWG to 350 kcmil Cu Line, (6) 12 to 2 AWG, (3) 12 to 1/0 AWG Cu Load |
