Description

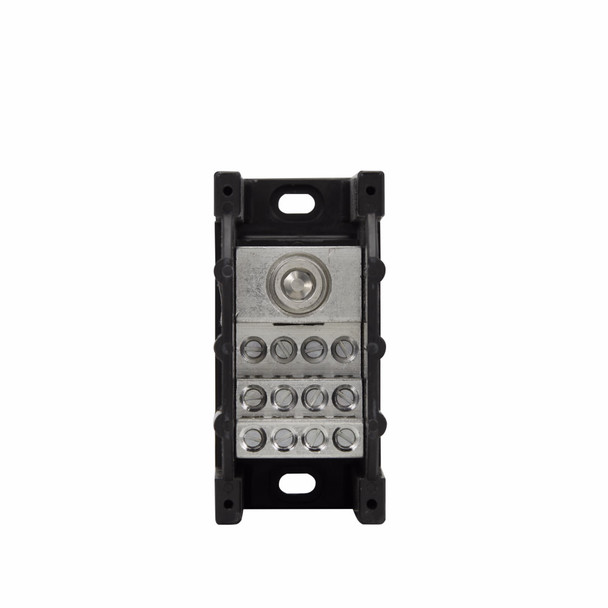

Bussmann PDB370-1
Bussmann Power Distribution Block, Barrier High SCCR, Series: PDB, 600 VAC/VDC, 310 A, 1 Pole, (1) Box Lug Primary Connections/Pole, (12) Box Lug Secondary Connection/Pole, 4 AWG to 350 kcmil Cu Line, (12) 14 to 4 AWG Cu Load, 8 to 4 AWG Wire, Class CC/G/J/T Fuse, 200/100 kA Short Circuit Current, Aluminum/Phenolic, Tin Plated, 3.38 in L x 1.96 in W x 3.32 in H
Additional Description: BUSS-PDB370-1 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series PDB power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 310 A, Single-pole, SCCR: 200 kA (8 To 4 AWG), 100 kA (14 To 4 AWG), Panel, Tin-plated aluminum connectors
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 A |
| Dimensions | 3.38 in L x 1.96 in W x 3.32 in H |
| Finish | Tin Plated |
| Fuse Type | Class CC/G/J/T |
| Material | Aluminum/Phenolic |
| Number of Poles | 1 |
| Series | PDB |
| Short Circuit Current Rating (kA) | 200/100 kA |
| Type | Barrier High SCCR |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 4 AWG to 350 kcmil Cu Line, (12) 14 to 4 AWG Cu Load, 8 to 4 AWG |
